Value Collection MSC67703322X Taper Pin Size 10 3 in Oal

Product Description

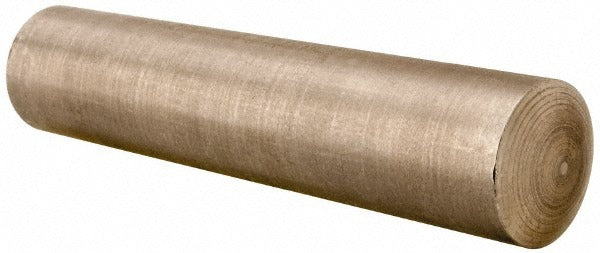

The VALUE COLLECTION MSC67703322X is a Size 10 taper pin machined from Grade 303 18-8 stainless steel with a passivated finish. It measures 3 inches overall length with a small end diameter of 0.6436 inches and a large end diameter of 0.706 inches. Taper pins are precision fasteners used to secure hubs, collars, and machine components to shafts, providing a reliable and removable connection that resists rotation and axial movement. The passivated stainless steel construction provides corrosion resistance suitable for demanding environments. This pin is sold individually and conforms to ANSI/ASME B18.8.2 standards.

This taper pin is suited for general industrial, mechanical, and maintenance applications where a removable, self-locking pin fastener is required. Typical uses include securing pulleys, gears, couplings, and collars to shafts in machinery, pumps, and mechanical assemblies. Machinists, millwrights, and maintenance technicians working in HVAC equipment manufacturing, pump systems, and general mechanical fabrication will find this pin appropriate for both new assembly and repair work where stainless steel corrosion resistance is a priority.

Key Features

• Size 10 taper pin conforming to ANSI/ASME B18.8.2
• Grade 303 18-8 stainless steel construction for corrosion resistance
• Passivated finish for enhanced surface protection
• Small end diameter of 0.6436 inches, large end diameter of 0.706 inches
• 3 inches overall length
• Diameter tolerance range of -0.0007 to +0.0013 inches for precision fitment

Compatibility

Designed as an OEM-style replacement or direct-use taper pin for mechanical assemblies requiring a Size 10 ANSI/ASME B18.8.2 taper pin in passivated stainless steel.

Installation Notes

Taper pins are typically installed and removed by machinists or maintenance technicians using a pin punch and hammer or a taper pin reamer to ensure the mating hole is properly sized. De-energize and lock out all equipment before servicing any mechanical assembly containing this pin. Do not force an oversized pin into an undersized hole, as this can crack hubs or split collars. Verify hole taper matches the ANSI/ASME B18.8.2 standard taper before installation.
