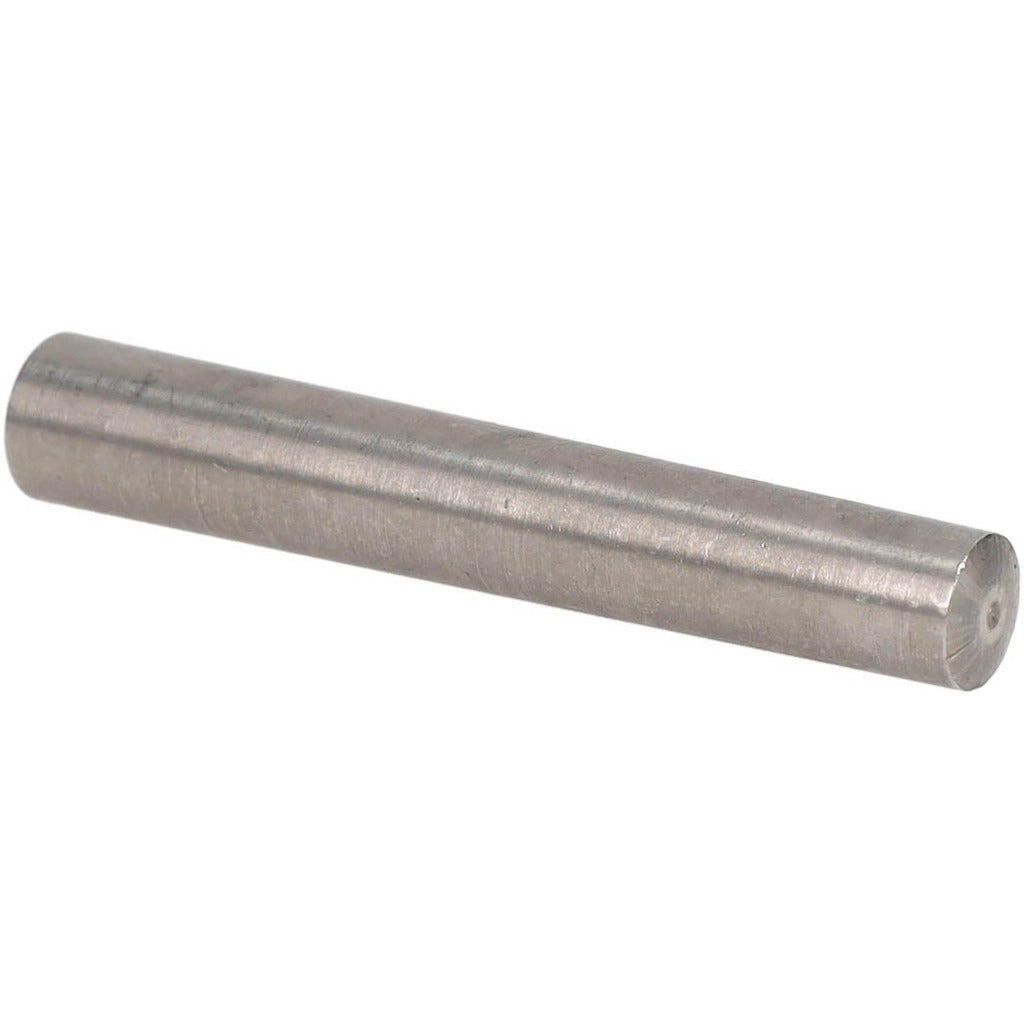

Value Collection MSC67702647X Size 7 Taper Pin Stainless Steel

Product Description

The VALUE COLLECTION MSC67702647X is a Size 7 stainless steel taper pin manufactured to ANSI/ASME B18.8.2 standards. It features a small end diameter of 0.357 inches and a large end diameter of 0.409 inches, with an overall length of 2.5 inches. Constructed from 18-8 Grade 303 stainless steel with a passivated finish, this pin is built to resist corrosion in demanding service environments. Taper pins are used to secure collars, hubs, and mechanical components to shafts, providing a reliable and removable connection. Machinists, maintenance technicians, and mechanical assemblers typically install these fasteners in industrial, HVAC, and mechanical equipment applications.

This taper pin is suited for use in mechanical assemblies where a precise, self-locking fit is required between mating components. The passivated stainless steel construction makes it appropriate for environments where moisture, mild chemicals, or corrosion exposure is a factor. It is commonly installed in shaft-to-hub connections, linkage assemblies, and equipment found in commercial and industrial settings. The Size 7 designation corresponds to standardized taper pin dimensions per ANSI/ASME B18.8.2, ensuring dimensional interchangeability with other compliant components.

Key Features

• Size 7 taper pin with 0.357-inch small end diameter and 0.409-inch large end diameter
• Overall length of 2.5 inches for standard Size 7 fitment
• Grade 303, 18-8 stainless steel construction for corrosion resistance
• Passivated finish enhances surface corrosion protection
• Manufactured to ANSI/ASME B18.8.2 dimensional standards
• Diameter tolerance range: -0.0007 inches to +0.0013 inches

Compatibility

Designed as a standard Size 7 taper pin per ANSI/ASME B18.8.2, suitable for use in any application or assembly that accepts a compliant Size 7 taper pin.

Installation Notes

Taper pins are typically installed by machinists or maintenance technicians using a tapered reamer to prepare the mating hole and a pin punch or press to drive the pin to final seating. Always de-energize and lock out equipment before servicing any mechanical assembly. Do not force an oversized pin into an undersized hole, as this can damage the bore or fracture the pin. Follow applicable ANSI and equipment manufacturer guidelines for fastener installation and inspection.
