Value Collection MSC67701086X Taper Pin Size 2 Stainless Steel

Product Description

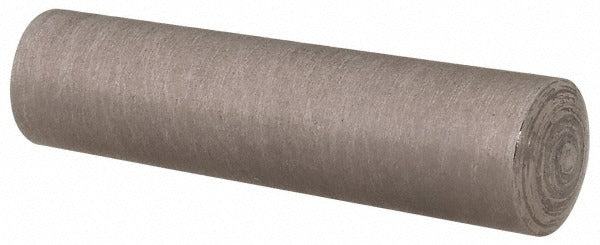

The VALUE COLLECTION MSC67701086X is a Size 2 taper pin machined from 303 18-8 stainless steel with a passivated finish. It measures 0.75 inches overall length with a small end diameter of 0.1774 inches and a large end diameter of 0.193 inches. The passivated surface treatment improves corrosion resistance by removing free iron from the metal surface without altering dimensional tolerances. This pin is used by machinists, millwrights, and maintenance technicians to align and secure components on shafts, hubs, and assemblies where a removable, self-locking fastener is required. It conforms to ANSI/ASME B18.8.2 standards.

Taper pins of this size are commonly used in light-duty mechanical assemblies, fixtures, and tooling applications across manufacturing, HVAC equipment manufacturing, and general industrial maintenance. The Size 2 designation indicates a standardized taper of 1 inch per foot, making it interchangeable with other ANSI/ASME B18.8.2-compliant Size 2 taper pins. This part is sold individually but carries a minimum order quantity of 10 units, making it suitable for stocking in maintenance cribs or tool rooms where repeat use is expected.

Key Features

• Size 2 taper pin per ANSI/ASME B18.8.2 standard
• 303 18-8 stainless steel construction for corrosion resistance
• Passivated finish for enhanced surface protection
• Small end diameter of 0.1774 inches with tolerance range of -0.0007 to +0.0013 inches
• 0.75 inches overall length suitable for compact assemblies

Compatibility

Designed as an OEM-style replacement or standard-stock taper pin for any mechanical assembly requiring a Size 2 ANSI/ASME B18.8.2-compliant taper pin in stainless steel.

Installation Notes

Taper pins are installed by a machinist or maintenance technician using a properly sized taper reamer to prepare the hole before driving the pin. Power down and de-energize any equipment before servicing components that contain taper pins. Drive the pin using a pin punch and hammer, ensuring the taper is fully seated. Do not force an undersized pin into an unreamed hole, as this can damage the bore or the pin.
