Value Collection MSC67700005X Taper Pin Size 6/0 303 Ss

Product Description

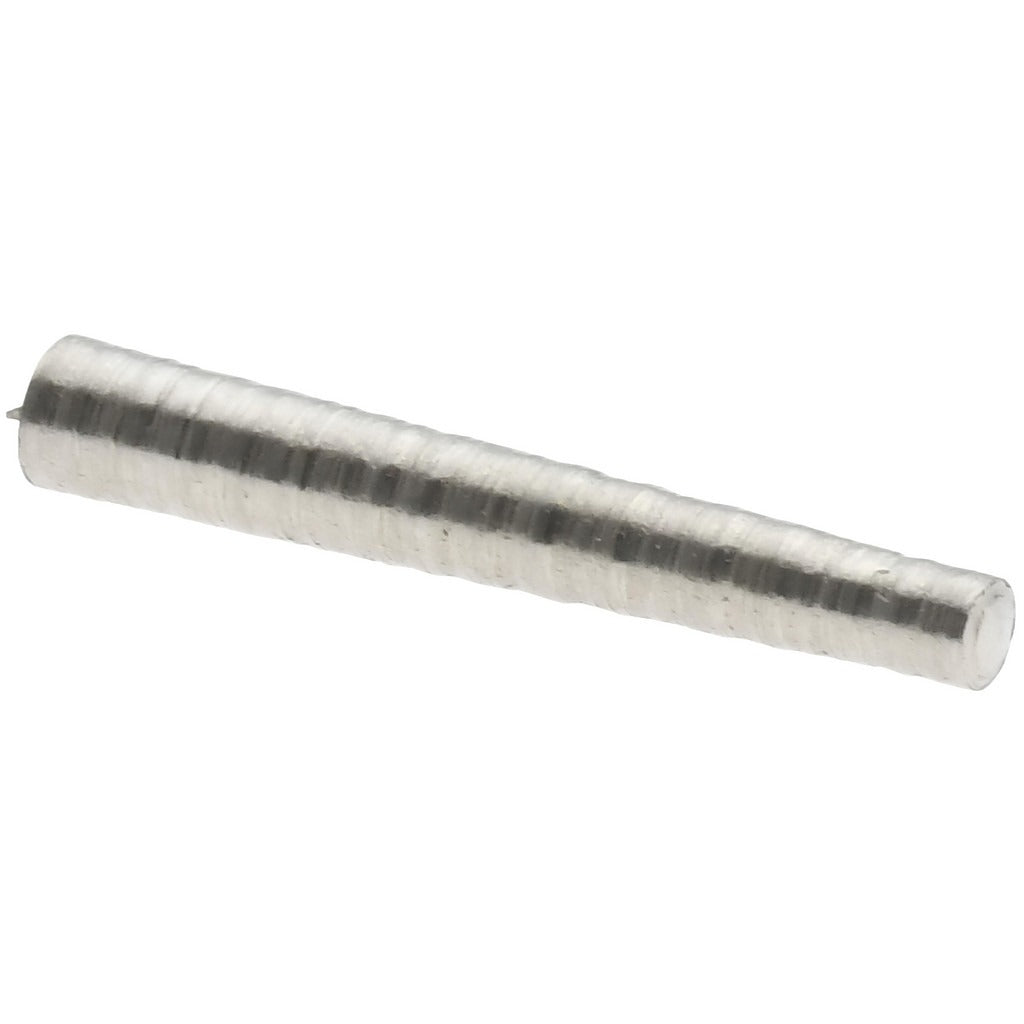

The VALUE COLLECTION MSC67700005X is a Size 6/0 taper pin machined from 303 stainless steel with a passivated finish. The pin measures 0.5 inches overall length with a small end diameter of 0.0676 inches and a large end diameter of 0.078 inches. Taper pins are precision fasteners used to lock components in angular or axial alignment on shafts, hubs, and assemblies. The passivated surface improves corrosion resistance without altering critical dimensions. Machinists, maintenance technicians, and mechanical assemblers work with taper pins in equipment repair, fixture building, and precision assembly applications. This pin conforms to ANSI/ASME B18.8.2 standards.

This taper pin is suited for light-duty precision fastening tasks in mechanical assemblies where a small, corrosion-resistant pin is required. Typical applications include securing collars, hubs, levers, and handles to shafts in industrial equipment, instrumentation, and general machinery. The 303 stainless steel construction makes it appropriate for environments with moderate moisture exposure or where ferrous contamination is a concern. It is sold in a minimum order quantity of 10 pieces per order, with individual package quantity of 1.

Key Features

• Size 6/0 taper pin conforming to ANSI/ASME B18.8.2 dimensional standards
• Machined from 18-8 Grade 303 stainless steel for corrosion resistance
• Passivated finish enhances surface corrosion resistance without dimensional change
• Small end diameter of 0.0676 inches with a tolerance range of -0.0007 inches to +0.0013 inches
• 0.5 inches overall length suitable for compact assembly applications
• Minimum order quantity of 10 units ensures adequate supply for production or repair use

Compatibility

Designed as an OEM-style replacement or standard service taper pin for mechanical assemblies requiring a Size 6/0 taper pin per ANSI/ASME B18.8.2.

Installation Notes

Taper pins are typically installed by machinists or mechanical technicians using a tapered reamer to prepare the hole and a pin punch or press to drive the pin into place. Ensure mating components are properly aligned and clamped before driving the pin. Wear appropriate eye protection during installation. Remove all load and de-energize or lock out any associated equipment before servicing assemblies that contain taper pins.
