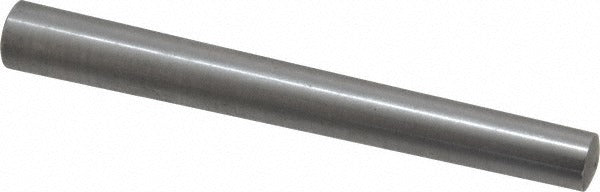

Value Collection MSC67552000X Size 7 Steel Taper Pin

Product Description

The VALUE COLLECTION MSC67552000X is a Size 7 uncoated steel taper pin manufactured from C-12L14 grade steel. It features a small end diameter of 0.3362 inches and a large end diameter of 0.409 inches, with an overall length of 3.5 inches. Taper pins are precision fasteners used to secure hubs, collars, and other components to shafts, providing a reliable mechanical lock through interference fit. This pin conforms to ANSI/ASME B18.8.2 standards and is suited for general industrial and mechanical assembly applications requiring a standard size 7 taper pin.

This taper pin is appropriate for use in light-to-medium duty mechanical assemblies, including shaft-to-hub connections, gear and pulley retention, and alignment fixtures in industrial, manufacturing, and maintenance settings. Machinists, millwrights, and maintenance technicians working with standard ANSI/ASME B18.8.2 taper pin specifications will find this pin a direct fit for applications calling for a Size 7 taper pin in uncoated steel.

Key Features

• Size 7 taper pin per ANSI/ASME B18.8.2 standard
• C-12L14 grade steel construction for consistent machinability
• Small end diameter: 0.3362 inches with a diameter tolerance range of -0.0007 to +0.0013 inches
• Large end diameter: 0.409 inches
• Overall length of 3.5 inches
• Uncoated finish suitable for further treatment or bare steel applications

Compatibility

Designed as a standard ANSI/ASME B18.8.2 Size 7 taper pin replacement or new installation fastener for mechanical assemblies requiring this pin size in uncoated steel.

Installation Notes

Taper pins are typically installed by machinists or millwrights using a tapered reamer to prepare the mating hole, followed by driving the pin into place with a pin punch and hammer. Always de-energize and lock out equipment before servicing any rotating shaft assembly. Removal is performed from the small end using a taper pin punch. Follow applicable ANSI standards and facility safety procedures during installation and removal.
