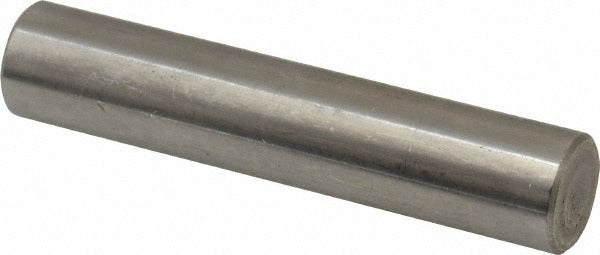

Value Collection MSC-67602169 Dowel Pin 1/2x2-1/2 Ss 18-8

Product Description

The Value Collection MSC-67602169 is a standard pull out dowel pin used to locate, align, and retain mating components in machined assemblies. Constructed from Grade 18-8 stainless steel with a bright finish, it measures 0.5 inches in diameter and 2.5 inches in overall length, with a diameter tolerance of 0.0002 inches for precise slip or press fits. The pull out style includes a threaded internal feature that allows extraction with a standard puller, making it practical for assemblies that require periodic disassembly. Machinists, tool-and-die technicians, and maintenance professionals use this type of pin across jigs, fixtures, dies, and production tooling.

This dowel pin suits industrial and manufacturing environments where repeated alignment and disassembly are required. The 18-8 stainless steel construction offers moderate corrosion resistance, making it appropriate for applications exposed to coolants, washdown environments, or moderate humidity. It is well-suited for use in fixture plates, mold assemblies, machine bases, and similar precision metalworking setups where accurate component registration is critical.

Key Features

• Pull out design with internal threaded feature allows extraction without damage to the bore
• Grade 18-8 stainless steel construction provides moderate corrosion resistance
• Diameter tolerance of 0.0002 inches supports precise slip or press fit applications
• Bright finish reduces surface irregularities for consistent seating
• 0.5-inch diameter by 2.5-inch length suits a wide range of fixture and tooling applications

Compatibility

Designed as a standard pull out dowel pin for use in machined fixtures, jigs, dies, and tooling assemblies requiring repeatable alignment and component registration.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet with an appropriate driver. Confirm bore diameter and tolerance before installation to achieve the intended fit class. When removing the pin, use a standard slide hammer or threaded puller engaged into the internal extraction feature to avoid bore damage. Always deburr and clean mating holes before installing to ensure accurate seating.
