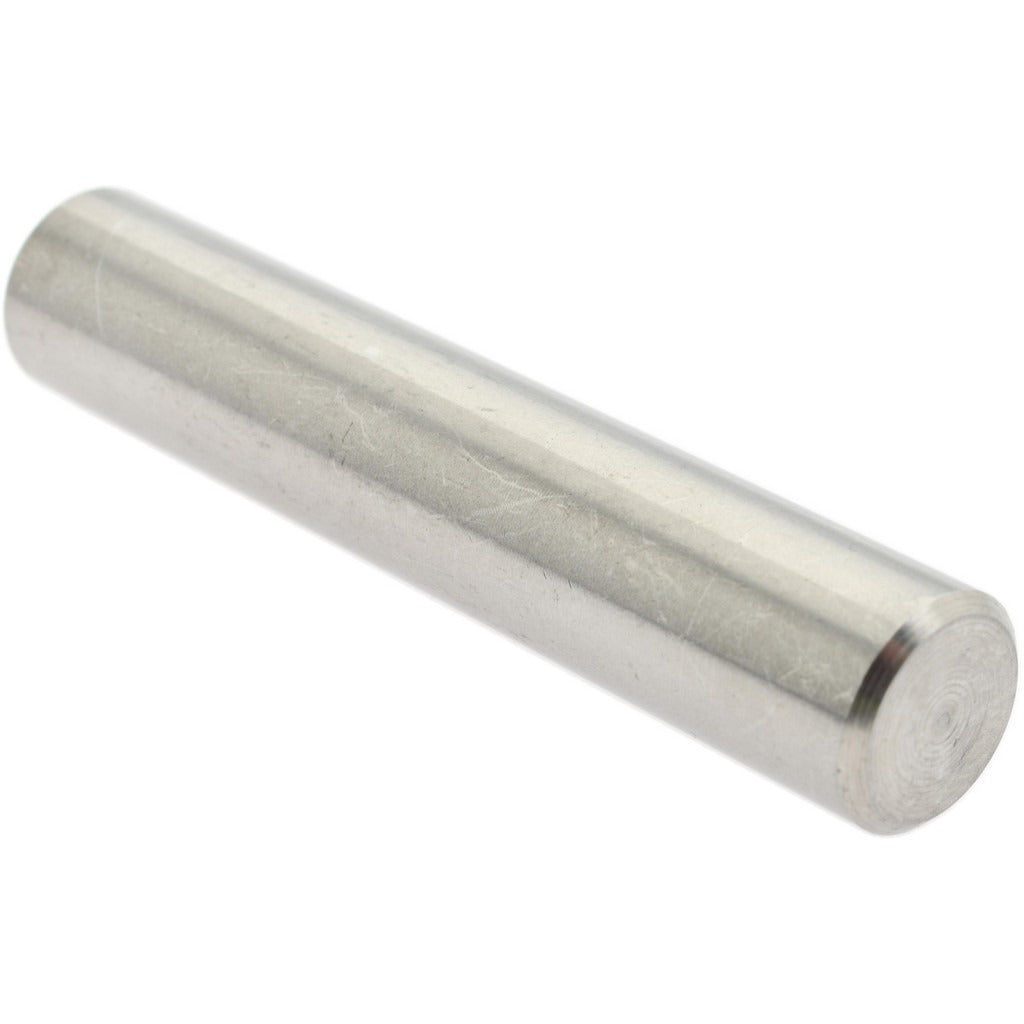

Value Collection MSC-67601880 Dowel Pin 3/8x2 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67601880 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 3/8 inch in diameter and 2 inches in overall length, with a diameter tolerance of 0.0002 inches for precise, repeatable fitment in close-tolerance bores. Pull out dowel pins feature a threaded internal hole at one end, allowing removal with a standard threaded puller when the pin is flush or recessed. Machinists, tool-and-die technicians, and maintenance mechanics use these pins to align fixtures, jigs, molds, and machine components where secure positioning and easy disassembly are both required.

This pin is suited for light to medium-duty alignment applications in manufacturing, assembly, and maintenance environments. The 18-8 stainless steel construction provides corrosion resistance for use in wet, washdown, or mildly corrosive service conditions. The bright finish indicates no additional plating or coating, keeping dimensional tolerances intact out of the package. Sold individually per package; minimum order quantity is 50 pieces.

Key Features

• Pull out design with internal threaded extraction hole for flush or recessed removal
• 18-8 stainless steel construction for corrosion resistance in demanding environments
• Diameter tolerance of 0.0002 inches for precision alignment and consistent bore fitment
• Bright, uncoated finish preserves dimensional accuracy without added plating thickness
• 3/8 inch diameter by 2 inch length suits a wide range of standard fixture and jig applications

Compatibility

Designed as a standard pull out dowel pin for general-purpose alignment and locating applications in fixtures, jigs, molds, and machinery where a 3/8 inch diameter, 2 inch length pin is specified.

Installation Notes

Installation and removal should be performed by qualified machinists or maintenance technicians familiar with close-tolerance pin work. Always ensure the receiving bore is clean, deburred, and within specification before pressing or driving the pin. Use a proper pin driver or arbor press to seat the pin without damaging the extraction thread. A standard threaded puller matched to the internal thread is required for removal — do not attempt pry or impact extraction on a flush-seated pull out pin.
