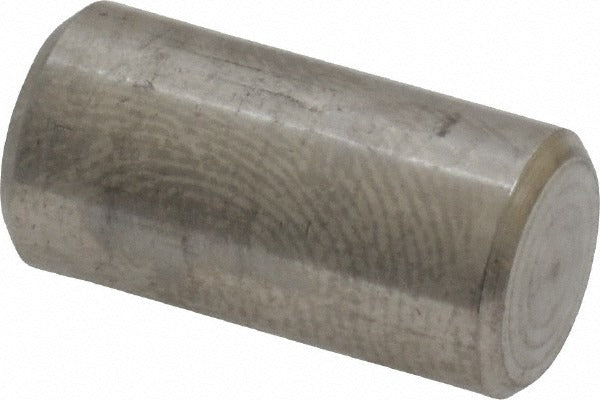

Value Collection MSC-67601641 Pull Out Dowel Pin 3/8x3/4 in

Product Description

The VALUE COLLECTION MSC-67601641 is a standard pull out dowel pin manufactured from Grade 18-8 stainless steel with a bright finish. Measuring 3/8 inch in diameter and 3/4 inch in overall length, this pin is used to align, locate, or retain components in precision assemblies. The 18-8 stainless steel construction provides corrosion resistance suitable for industrial, marine, and food-service-adjacent environments. A diameter tolerance of 0.0002 inches ensures consistent, repeatable fit in reamed holes. This type of pin is installed and removed by machinists, maintenance technicians, and fabricators working on jigs, fixtures, and mechanical assemblies.

Pull out dowel pins are used where precise component alignment is required and where the pin must be retrievable after assembly. The pull out design features a threaded or slotted end that allows removal with standard extraction tools without damaging the parent material. Typical applications include fixture plates, die sets, tooling bodies, and machine bases where repeated disassembly is required. The bright finish maintains close dimensional tolerances and provides a clean surface for interference or slip fits.

Key Features

• Grade 18-8 stainless steel construction for corrosion resistance in demanding environments
• Diameter: 3/8 inch with a tight tolerance of 0.0002 inches for precision fitment
• Overall length: 3/4 inch (0.7500 inches decimal)
• Bright finish maintains dimensional accuracy and surface integrity
• Pull out design allows tool-assisted removal without bore damage
• Sold individually; minimum order quantity is 50 units

Compatibility

Designed as a standard-style pull out dowel pin for use in precision-alignment applications requiring a 3/8-inch diameter reamed hole and 3/4-inch depth, including tooling fixtures, jigs, die sets, and general mechanical assemblies.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard drill and reaming equipment to prepare a properly sized and toleranced hole. Ensure the mating bore is reamed to the correct diameter and finish before driving the pin. Use a pin extraction tool or slide hammer for removal to avoid damaging the bore or surrounding material. Always de-energize and lock out equipment before servicing any assembly containing alignment pins.
