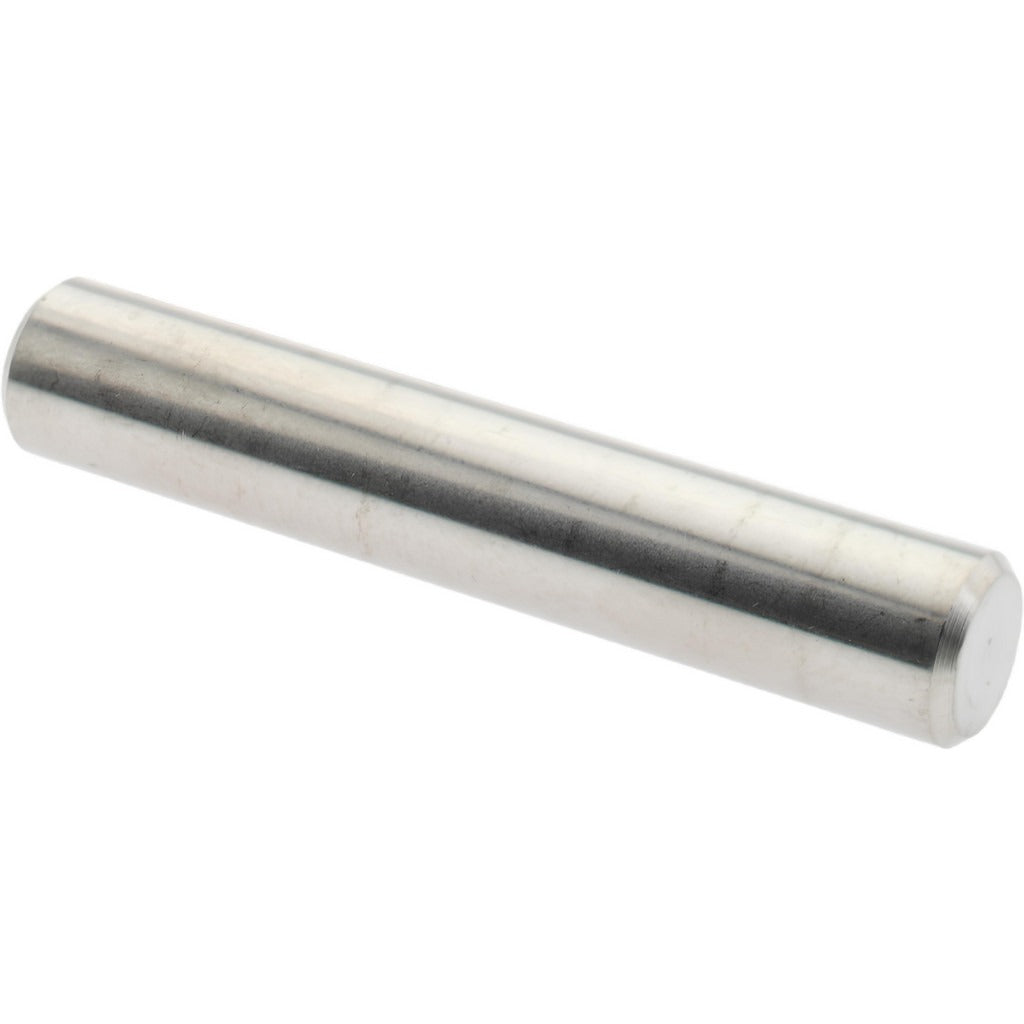

Value Collection MSC-67601484 Dowel Pin 5/16 X 1.75 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67601484 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 5/16 inches in diameter and 1.75 inches in overall length, with a diameter tolerance of 0.0002 inches for precise locating applications. The pull out style head allows removal with a standard puller or threaded extractor without damaging the mating bores. This pin is suited for machinists, toolmakers, and maintenance technicians working on fixtures, jigs, dies, and precision assemblies where corrosion resistance and accurate component alignment are required.

This dowel pin is used in light to medium-duty fixturing and assembly applications where stainless steel is specified for corrosion resistance or sanitary requirements. Typical environments include food processing equipment, wet shop fixtures, marine fabrication, and general precision machining setups. The pull out design is favored when pins must be removed and reinstalled repeatedly without permanent press-fit installation.

Key Features

• Pull out head style allows controlled removal using a standard extractor or puller
• 18-8 stainless steel construction provides corrosion and oxidation resistance
• Bright, uncoated finish maintains tight dimensional tolerances right out of the package
• Diameter tolerance of 0.0002 inches supports precision locating and repeatable fixture alignment
• 5/16-inch diameter and 1.75-inch length suit a wide range of light fixturing and tooling applications

Compatibility

Designed as a standard-style pull out dowel pin for use in precision fixtures, jigs, dies, and tooling assemblies that require a 5/16-inch diameter locating pin with a removable head configuration.

Installation Notes

Dowel pins are typically installed by machinists or toolmakers using a press, dead-blow mallet, or arbor press into reamed holes sized to the appropriate fit class. Power down and de-energize any machine or fixture before pin installation or removal. Use the pull out head with the correct extractor to avoid galling the bore or deforming the pin head. Do not drive pull out pins fully flush, as access to the head is required for extraction.
