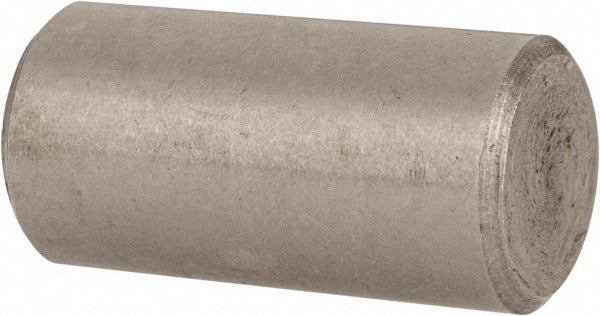

Value Collection MSC-67601245 Pull Out Dowel Pin 5/16x5/8

Product Description

The VALUE COLLECTION MSC-67601245 is a standard pull out dowel pin manufactured from 18-8 stainless steel with a bright finish. Dowel pins are precision-machined fasteners used to align, locate, or retain mating components in assemblies. This pin measures 5/16 inch in diameter and 5/8 inch in overall length, with a diameter tolerance of 0.0002 inches for close-fit applications. The 18-8 stainless steel construction provides corrosion resistance suitable for general industrial, marine-adjacent, and food-processing environments. The pull out style features a threaded internal hole at one end, allowing removal with a standard extraction tool without damaging the host material. Machinists, tool and die technicians, and maintenance professionals are the typical installers.

This pull out dowel pin is suited for precision alignment tasks in jigs, fixtures, dies, and mechanical assemblies where components must be accurately registered and repeatedly disassembled. The bright finish indicates no additional surface treatment beyond the base material, keeping dimensional tolerances intact. Applications span general manufacturing, equipment maintenance, and structural alignment in both light and heavy industrial settings. Sold individually per package, with a minimum order quantity of 100 pieces.

Key Features

• 18-8 stainless steel construction for corrosion resistance in demanding environments
• 5/16 inch diameter with a tight diameter tolerance of 0.0002 inches for precision fits
• 5/8 inch overall length (0.6250 inches decimal) for compact alignment applications
• Pull out design with internal threaded extraction hole for clean, tool-assisted removal
• Bright finish preserves dimensional accuracy with no coating buildup
• Minimum order quantity of 100 pieces for production and maintenance stocking needs

Compatibility

Designed as a standard-style pull out dowel pin for use in precision alignment and locating applications across general industrial assemblies, jigs, fixtures, and dies requiring a 5/16 inch diameter hole pattern.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet to seat the pin into a reamed or precision-drilled hole. Ensure the receiving hole is clean and free of burrs before installation. The threaded extraction bore is intended for use with a standard pull-out tool or threaded rod to remove the pin without damaging the bore. Do not exceed the press-fit tolerance of the host material to avoid bore damage.
