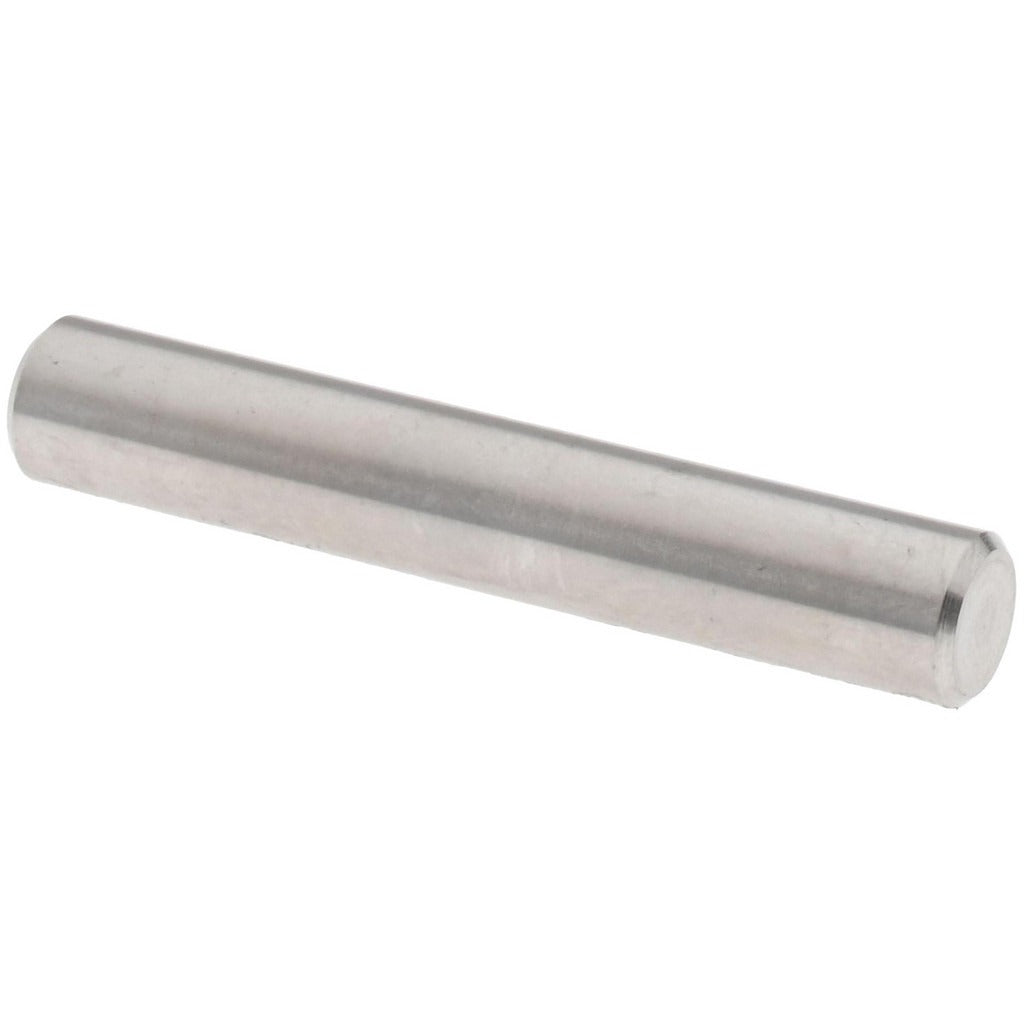

Value Collection MSC-67601088 Dowel Pin 1/4 X 1.5 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67601088 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 0.25 inches in diameter and 1.5 inches in overall length, with a diameter tolerance of 0.0002 inches for precise, repeatable alignment in close-tolerance applications. Pull out dowel pins are used to locate and align mating components in assemblies and are designed to be removed without a press, making them suitable for assemblies that require periodic disassembly. Machinists, toolmakers, and maintenance technicians install these pins in fixtures, dies, jigs, and precision mechanical assemblies.

This pin is suited for light-duty to medium-duty industrial applications where corrosion resistance is a priority. The 18-8 stainless steel construction provides good resistance to oxidation and many common industrial chemicals, making it appropriate for food-processing equipment, medical-device fixtures, marine environments, and general manufacturing assemblies. Its bright finish requires no additional surface preparation before installation.

Key Features

• 18-8 stainless steel construction provides corrosion resistance without plating
• Tight diameter tolerance of 0.0002 inches supports precision alignment
• Pull out design allows removal without a press or blind-hole extraction tools
• Bright, uncoated finish is clean and ready for immediate use
• 0.25 inch diameter x 1.5 inch length suits a wide range of standard fixture and jig applications

Compatibility

Designed as a standard pull out dowel pin for use in precision fixtures, dies, jigs, and mechanical assemblies requiring a 0.25 inch nominal diameter pin hole and a 1.5 inch pin length.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using hand tools or a light arbor press for initial seating, though the pull out design allows extraction by hand or with standard pull-out tooling. Verify mating hole tolerances and surface finish before installation to ensure proper fit and alignment. Clean and deburr pin holes before inserting the pin to prevent galling on the stainless steel surface. Always confirm the assembly is de-energized and at rest before performing any alignment or pin work on active machinery.
