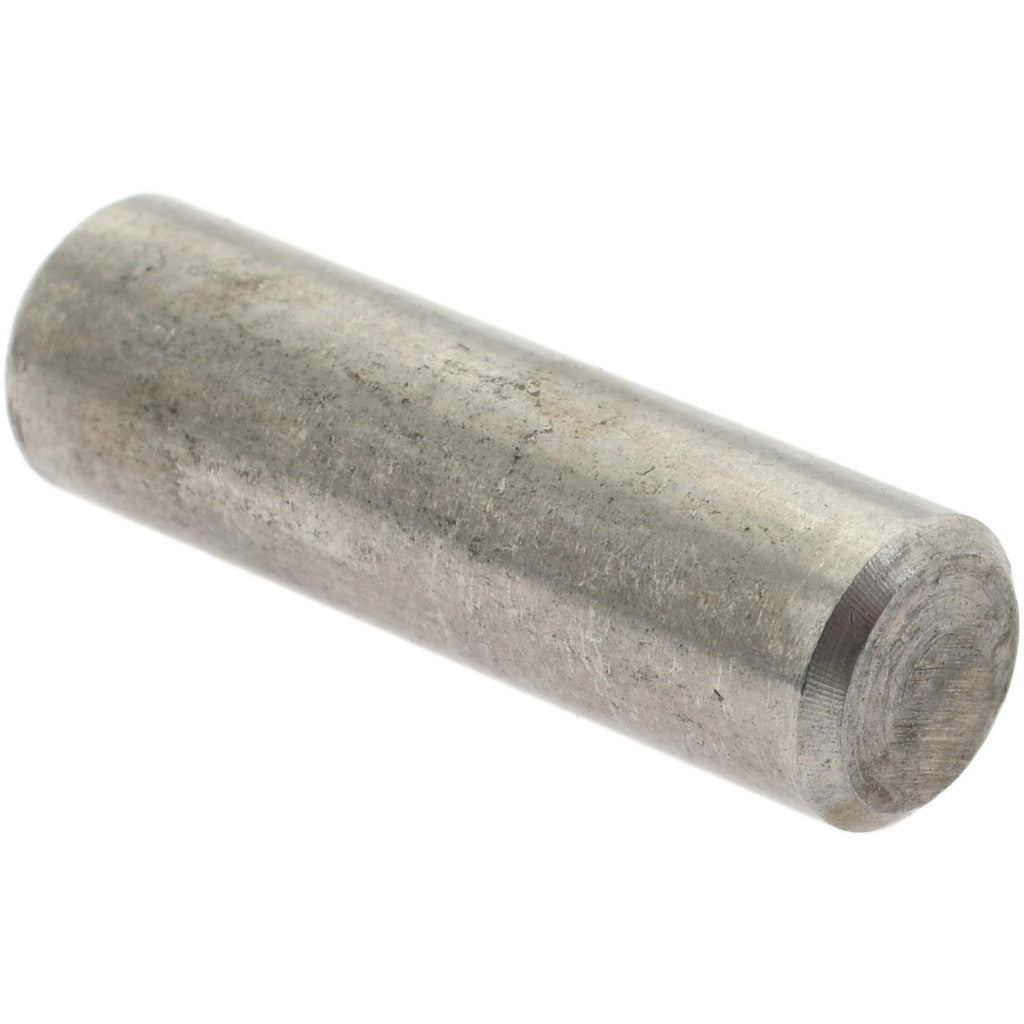

Value Collection MSC-67600965 Pull Out Dowel Pin 1/4x7/8 in

Product Description

The VALUE COLLECTION MSC-67600965 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 1/4 inch in diameter and 7/8 inch (0.875 inches) in overall length, with a diameter tolerance of 0.0002 inches for consistent, repeatable alignment. Pull out dowel pins feature a threaded internal hole at one end, allowing removal from blind-hole applications using a standard puller or threaded rod. This design makes them a practical choice wherever a conventional press-fit pin would be difficult or impossible to extract without damage to the surrounding assembly.

These pins are used in precision alignment and locating applications across industrial, mechanical, and tooling environments. The 18-8 stainless steel construction provides good corrosion resistance, making them suitable for washdown environments, food-processing equipment, and general-purpose fixtures where mild corrosion exposure is a concern. Machinists, toolmakers, and maintenance mechanics commonly specify pull out dowel pins for jigs, fixtures, and machine assemblies where components must be accurately repositioned after disassembly.

Key Features

• Standard pull out design with internal threaded extraction hole for use in blind-hole applications
• 18-8 stainless steel construction for corrosion resistance in wet or mildly corrosive environments
• 1/4 inch diameter with a tight 0.0002 inch diameter tolerance for precise locating
• 7/8 inch overall length (0.875 inches) suits compact fixture and jig applications
• Bright, uncoated finish maintains close dimensional accuracy without added coating thickness

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard pull out dowel pin applications requiring a 1/4 inch diameter, 18-8 stainless steel pin in blind-hole fixture and alignment assemblies.

Installation Notes

Pull out dowel pins are typically installed by machinists or maintenance mechanics using a press or mallet to seat the pin flush or to the required depth in a reamed hole. Always ensure the receiving hole is reamed to the appropriate tolerance before installation to achieve proper fit and alignment. To remove, thread a correctly sized rod or puller tool into the internal extraction hole and pull straight out — do not pry or wedge the pin, as this may damage the bore or the pin body. Degrease mating surfaces and inspect hole condition before reinstallation.
