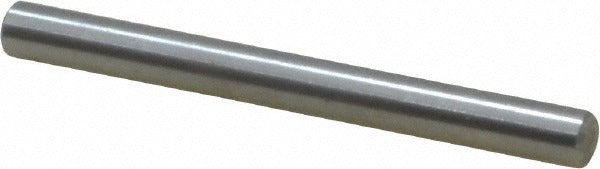

Value Collection MSC-67600809 Pull Out Dowel Pin 3/16x2in Ss

Product Description

The VALUE COLLECTION MSC-67600809 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright finish. Pull out dowel pins are precision-ground cylindrical fasteners used to align, locate, or retain mating components in assemblies where the pin must be removable from a blind hole. The 3/16-inch diameter and 2-inch overall length suit a wide range of light- to medium-duty fixture and jig applications. The 18-8 stainless steel construction provides corrosion resistance in wet, washdown, or mildly chemical environments. These pins are sold individually with a minimum order quantity of 100 units per order.

Pull out dowel pins are common in machine shops, maintenance departments, and fabrication environments wherever repeatable part alignment is required. A standard pull out design includes a threaded extraction hole at one end, allowing the pin to be removed from a blind bore using a slide hammer or threaded puller without damaging the housing. This pin is appropriate for use in jigs, fixtures, dies, and precision assemblies across industrial, mechanical, and general-trade maintenance applications.

Key Features

• 18-8 stainless steel construction for corrosion resistance in wet or chemically active environments
• Bright finish for consistent surface quality and dimensional accuracy
• Diameter tolerance of plus or minus 0.0002 inches for precise fit in close-tolerance bores
• Pull out design allows extraction from blind holes using a standard threaded puller
• 3/16-inch diameter by 2-inch length suits light- to medium-duty alignment applications
• Sold in multiples of 100 units per order for production and maintenance stocking

Compatibility

Designed as a standard OEM-style pull out dowel pin suitable for general industrial and mechanical assembly applications requiring a 3/16-inch diameter, 2-inch length alignment pin in stainless steel.

Installation Notes

Installation and removal should be performed by a qualified machinist or maintenance technician familiar with precision fastener practices. Press or drive the pin into the bore only to the depth specified by the assembly drawing to avoid bottoming damage. To remove, thread a compatible puller into the extraction hole and apply steady axial force — do not hammer laterally on the pin body. Always verify bore diameter and depth before installation to confirm proper fit.
