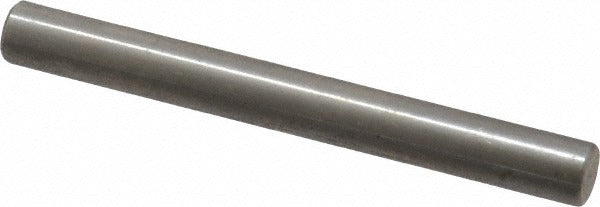

Value Collection MSC-67600767 Dowel Pin 3/16 X 1.75 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67600767 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright finish. It measures 3/16 inch in diameter and 1.75 inches in overall length, with a diameter tolerance of 0.0002 inches for precise, repeatable alignment. Pull out dowel pins feature a threaded extraction hole at one end, allowing removal from blind holes without damage to the mating parts. These pins are used in fixturing, jigs, machine assemblies, and tooling applications where accurate component alignment and repeated disassembly are required. Installation and removal are handled by machinists, tool and die makers, and maintenance technicians working on mechanical assemblies.

This pin suits applications where corrosion resistance is a priority alongside dimensional precision. Grade 18-8 stainless steel performs reliably in moist, mildly chemical, or food-adjacent environments. The bright finish indicates no additional coating or plating, preserving the as-ground surface condition and dimensional integrity. Typical use cases include precision jig and fixture work, mold alignment, and mechanical subassemblies requiring indexed locating features. This SKU is sold individually and carries a minimum order quantity of 100 pieces.

Key Features

• Pull out design with threaded extraction hole for clean removal from blind holes
• Grade 18-8 stainless steel construction for corrosion resistance
• Tight diameter tolerance of 0.0002 inches for precise alignment fits
• Bright finish — no coating or plating, preserving ground surface dimensions
• 3/16 inch diameter by 1.75 inches length for compact locating applications

Compatibility

Designed as a standard pull out dowel pin for use in precision mechanical assemblies, jigs, fixtures, and tooling applications requiring a 3/16 inch nominal locating pin diameter.

Installation Notes

Installation is typically performed by machinists or mechanical technicians using a press or mallet with a pin driver — never strike the pin face directly without a proper driver to avoid surface damage. The receiving hole should be reamed to the appropriate tolerance class for a slip or press fit as required by the application. Always de-energize and lock out machinery before servicing assemblies containing locating pins. Use the threaded extraction hole with the correct extractor tool to remove the pin without damaging the bore.
