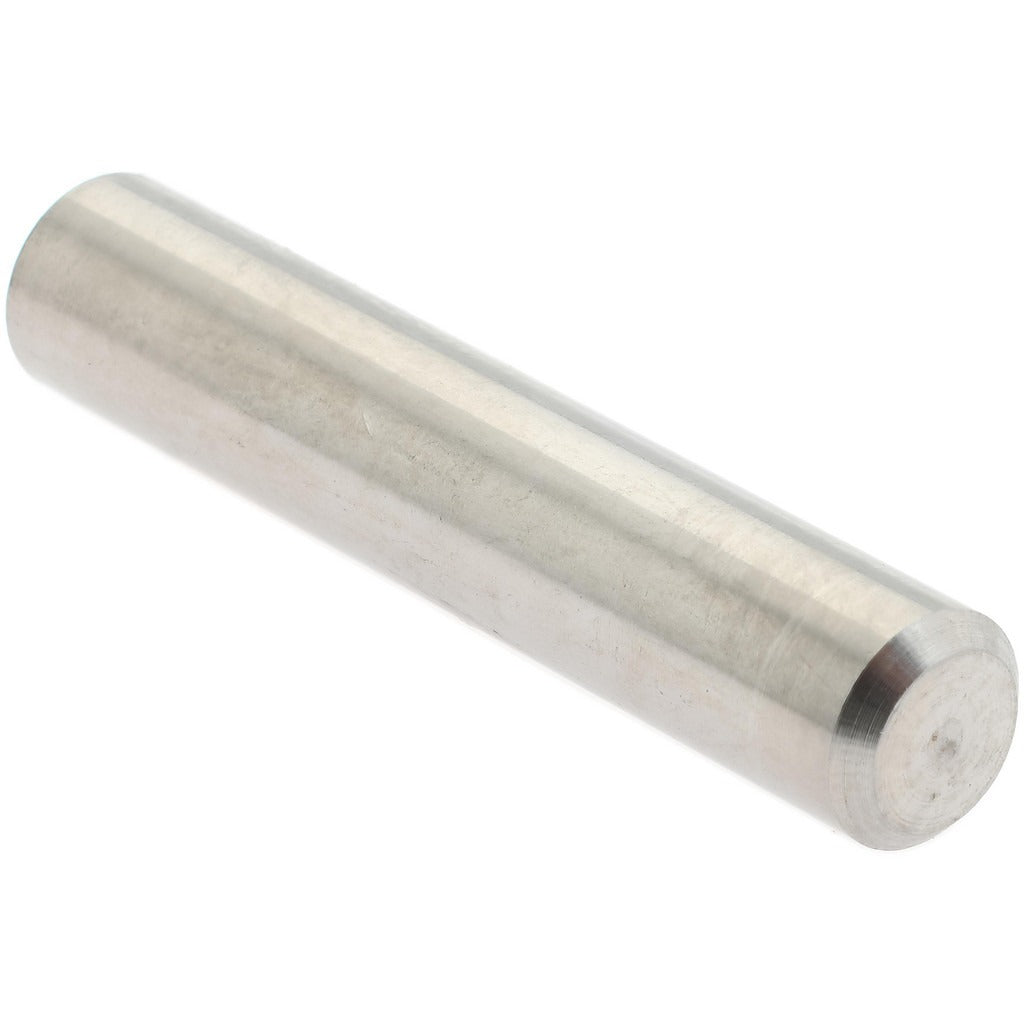

Value Collection MSC-67600643 Dowel Pin 3/16x1 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67600643 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. Measuring 3/16 inch in diameter and 1 inch in overall length, this pin is used to align, locate, and retain mating components in assemblies where precise positioning is required. The 18-8 stainless steel construction provides corrosion resistance suitable for general industrial, maintenance, and light mechanical applications. Diameter tolerance is held to 0.0002 inch, ensuring a consistent, repeatable fit in reamed or drilled locating holes. Machinists, maintenance technicians, and tool-and-die professionals are the primary installers of this hardware.

This dowel pin is suited for use in fixture plates, jigs, die sets, and general mechanical assemblies where components must be repeatedly disassembled and realigned. The pull out style design facilitates removal without damaging the workpiece or surrounding material, making it well-suited for assemblies that require periodic servicing or adjustment. It is appropriate for both light production and maintenance environments across manufacturing, fabrication, and general trade applications.

Key Features

• 18-8 stainless steel construction for corrosion resistance in general-duty applications
• Standard pull out style allows clean removal during disassembly and servicing
• Diameter tolerance of 0.0002 inch for consistent fit in precision-reamed holes
• Bright, uncoated finish — no plating or coating to affect critical dimensions
• 3/16 inch diameter by 1 inch overall length for compact locating applications

Compatibility

Designed as a standard pull out dowel pin for use in fixture plates, jigs, tooling, and mechanical assemblies requiring a 3/16 inch diameter locating pin with a precision-tolerance fit.

Installation Notes

Pull out dowel pins are typically installed by machinists or maintenance technicians using a press or mallet into precision-reamed holes sized to match the pin diameter and specified tolerance. Ensure the receiving hole is clean and free of burrs before installation. The pull out feature allows extraction with a puller tool — avoid driving the pin from the opposite side, as this may damage the assembly or surrounding material. Follow applicable facility safety procedures and equipment lockout protocols before servicing assemblies containing locating pins.
