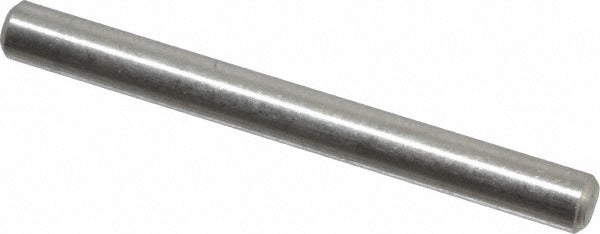

Value Collection MSC-67600361 Dowel Pin 1/8x1-1/4 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67600361 is a standard pull out dowel pin used to align, locate, and retain mating components in mechanical assemblies. Machined from Grade 18-8 stainless steel with a bright finish, this pin measures 1/8 inch in diameter and 1.25 inches in overall length, with a diameter tolerance of 0.0002 inches for close-fit applications. The pull out style features a configuration that allows removal without press tooling, making it practical for assemblies that require periodic disassembly. Machinists, maintenance technicians, and tool-and-die professionals install this type of pin across a wide range of production and repair applications.

This dowel pin is suited for use in jigs, fixtures, dies, molds, and general mechanical assemblies where precise component alignment is required. The 18-8 stainless steel construction provides corrosion resistance, making it appropriate for use in wet or mildly corrosive environments in addition to standard shop and production settings. Its compact 1/8-inch diameter fits tight-tolerance bores in light-duty tooling and precision fixtures.

Key Features

• Standard pull out style allows removal without specialized press equipment
• Grade 18-8 stainless steel construction provides corrosion resistance
• Bright finish with a diameter tolerance of 0.0002 inches for close-fit bore applications
• 1/8 inch diameter x 1.25 inches overall length suits light-duty precision tooling
• Lightweight at approximately 0.005 pounds per pin

Compatibility

Designed as a standard pull out dowel pin for use in mechanical assemblies, jigs, fixtures, dies, and molds requiring 1/8-inch diameter alignment pins in Grade 18-8 stainless steel.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using hand tools or a light arbor press fitted to the bore diameter. Ensure the mating bore is clean, dimensionally correct, and free of burrs before insertion. The pull out design allows extraction with a standard pin puller or threaded extractor without damaging the bore. Always follow applicable machine safety and lockout/tagout procedures before servicing assemblies that contain dowel pins.
