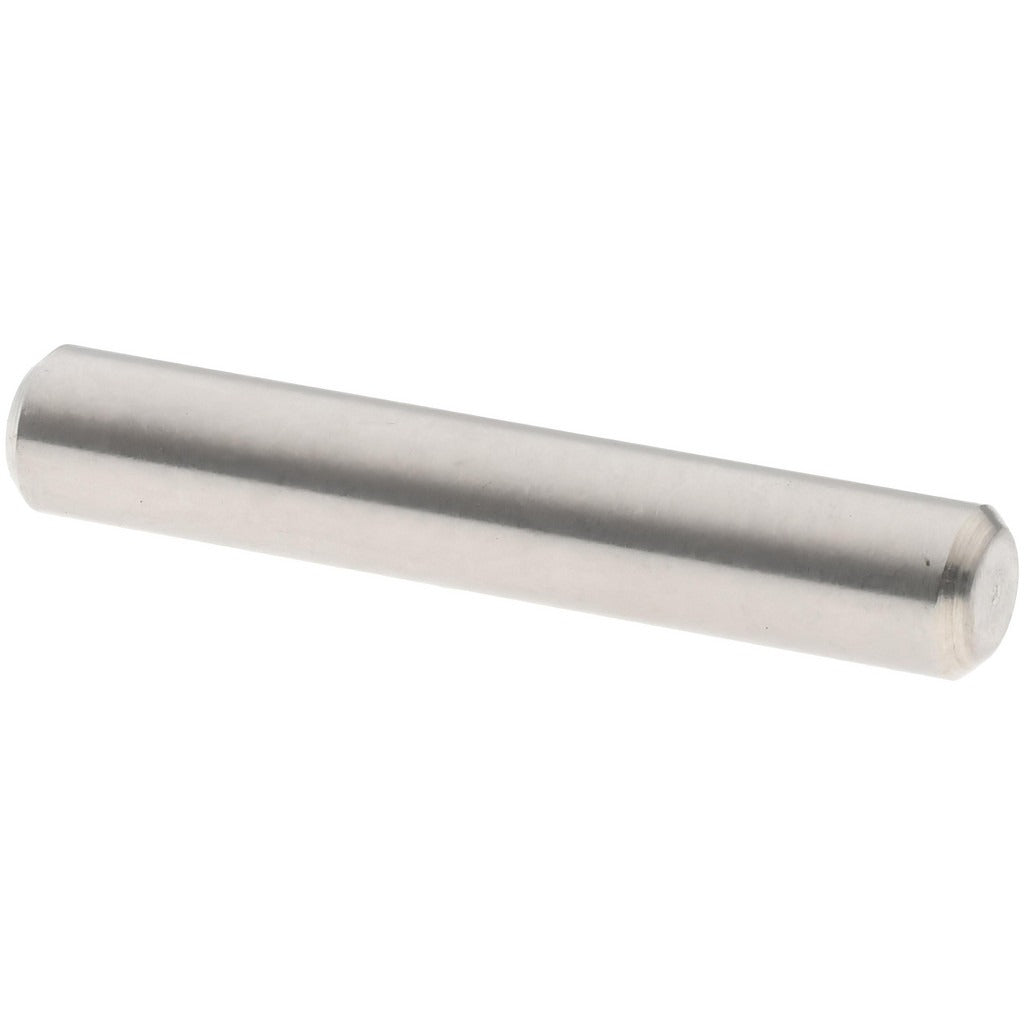

Value Collection MSC-67600247 Pull Out Dowel Pin 1/8x3/4 in

Product Description

The VALUE COLLECTION MSC-67600247 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 1/8 inch in diameter and 3/4 inch (0.75 inches) in overall length, with a diameter tolerance of 0.0002 inches for precise, repeatable alignment. Pull out dowel pins are used in jigs, fixtures, dies, and machined assemblies where components must be located accurately and then disassembled without damage. The knurled or grooved head design allows removal with standard hand tools, making these pins suitable for assemblies that are serviced or adjusted regularly. Machinists, tool and die makers, and industrial maintenance technicians are the typical installers.

This pin is suited for light-duty alignment tasks in manufacturing fixtures, inspection tooling, and general mechanical assemblies. The 18-8 stainless steel construction provides corrosion resistance appropriate for food processing environments, washdown applications, and settings where mild chemical exposure is a concern. The bright finish maintains close dimensional tolerances without adding coating thickness that could affect fit. Sold individually, this pin is available with a minimum order quantity of 100 pieces, making it practical for stocking in production or maintenance facilities.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in washdown and food-grade environments
• Bright, uncoated finish maintains tight dimensional tolerances
• Diameter tolerance of 0.0002 inches ensures repeatable, accurate component alignment
• Pull out head design allows removal without press or punch, reducing disassembly time
• Compact 1/8 x 3/4 inch size fits standard light-duty fixture and tooling applications

Compatibility

Designed as a standard pull out dowel pin for use in machined fixtures, jigs, dies, and precision mechanical assemblies requiring 1/8-inch diameter alignment pins in 18-8 stainless steel.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using hand tools suited for light press or slip fits. Verify hole diameter and tolerance in the mating component before installation to ensure proper fit class. Power down and de-energize any equipment before servicing assemblies that contain these pins. Do not force oversized pins into undersized holes, as this can damage the bore and affect alignment accuracy.
