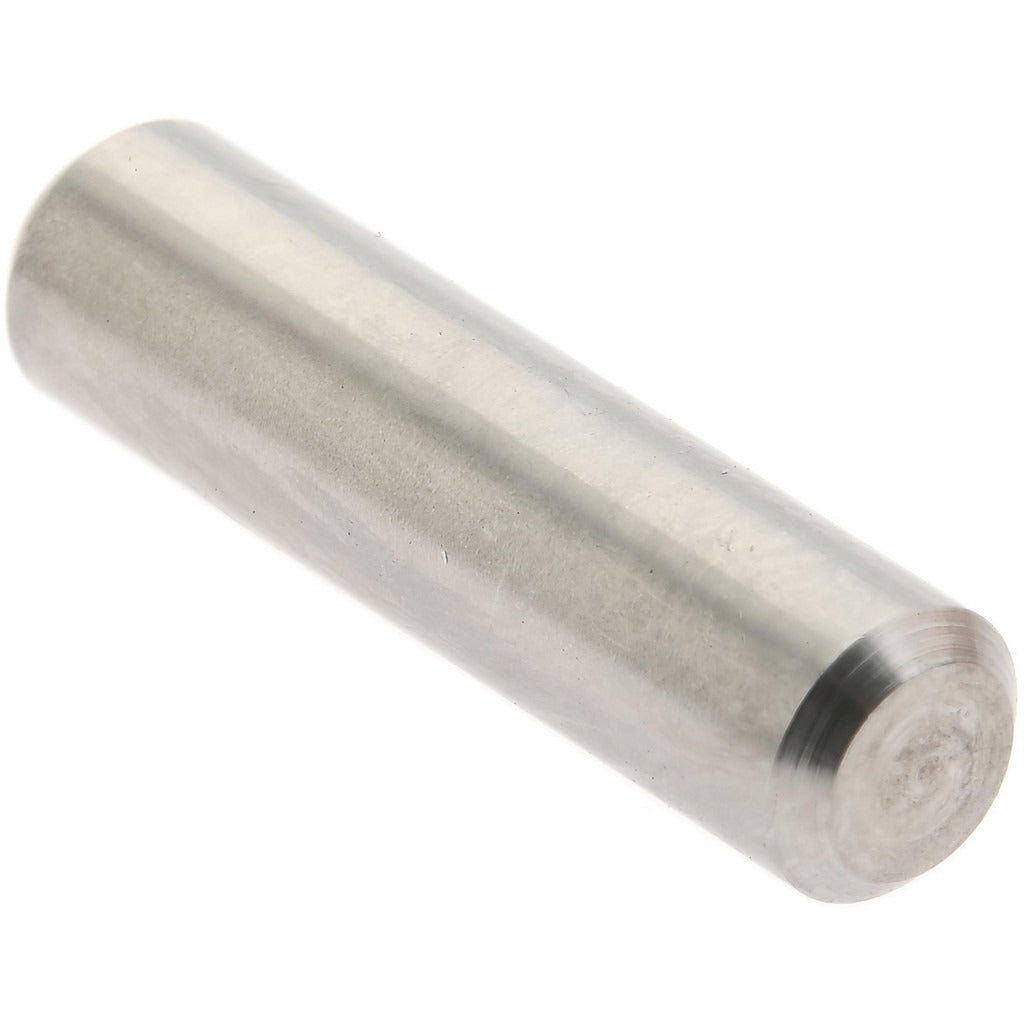

Value Collection MSC-67600163 Dowel Pin 1/8 X 1/2 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67600163 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 0.125 inches in diameter and 0.5 inches in overall length, with a diameter tolerance of 0.0002 inches for precise slip or press fits. This pin is used to locate, align, or retain components in assemblies where corrosion resistance and dimensional accuracy are required. Machinists, tool and die technicians, and maintenance mechanics install this type of pin in jigs, fixtures, and production tooling across a wide range of industrial applications.

This pull out dowel pin is suited for light-duty alignment and locating work in assemblies where the pin must be removable without a press. The standard pull out head style allows extraction with a threaded puller or similar hand tool, making it practical for fixtures and tooling that require regular disassembly. Typical environments include machine shops, fabrication facilities, and maintenance operations where stainless steel is preferred over alloy steel for resistance to moisture, mild chemicals, and corrosion.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in wet or chemically exposed environments
• Bright, uncoated finish maintains close dimensional tolerances out of the box
• Diameter tolerance of 0.0002 inches supports accurate component alignment
• Standard pull out head design allows tool-assisted removal without disassembling the surrounding workpiece
• Compact 0.125 x 0.5 inch form factor fits tight-clearance tooling and fixture applications

Compatibility

Designed as a standard pull out dowel pin for use in jigs, fixtures, and mechanical assemblies requiring a 0.125-inch diameter locating or retention pin in 18-8 stainless steel.

Installation Notes

Installation and removal should be performed by a qualified machinist or maintenance technician familiar with precision locating hardware. Ensure the receiving hole is reamed to the correct tolerance before installation to avoid galling the stainless steel surface. Use a threaded puller sized for the pull out head when removing the pin — do not drive it out from the head end with an impact tool. Clean and inspect the hole and pin for burrs or debris before reinstalling in any precision fixture.
