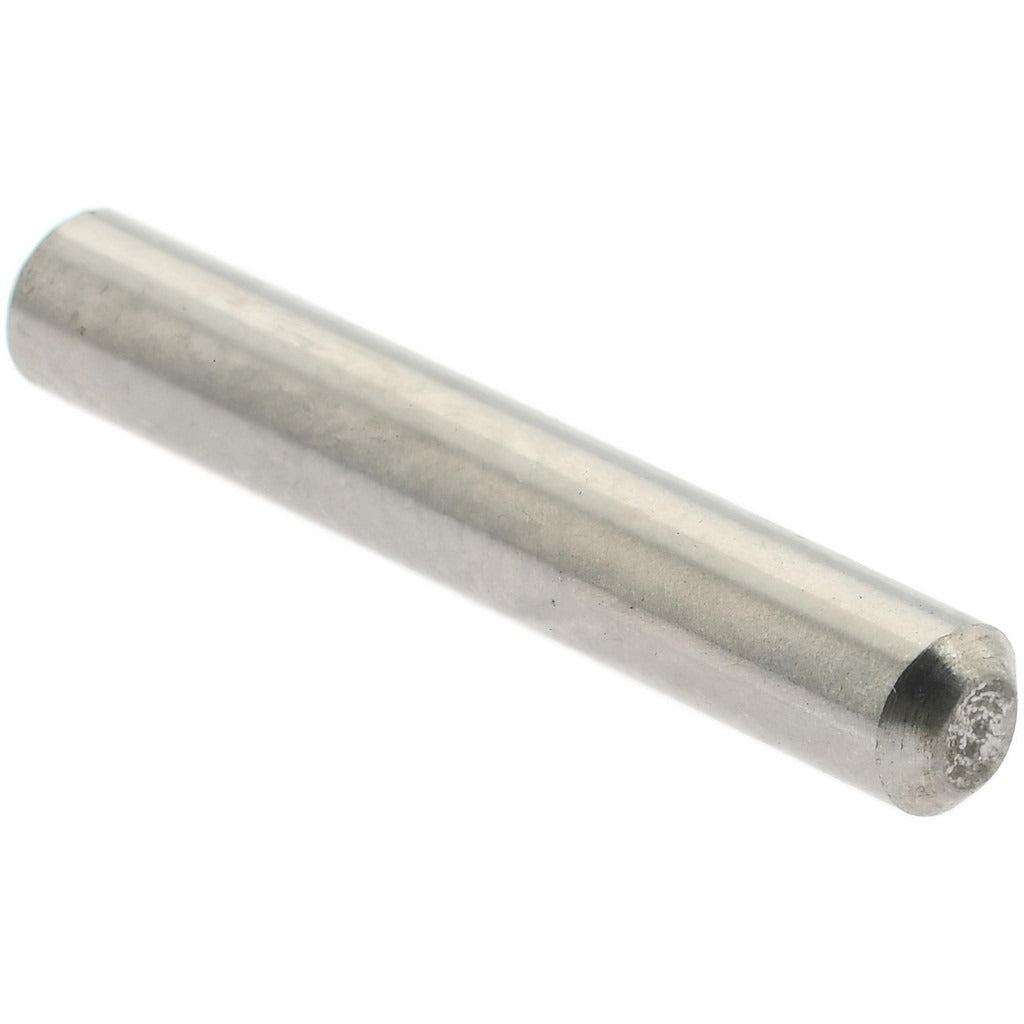

Value Collection MSC-67600007 Pull Out Dowel Pin 3/32x5/8 18-8 Ss

Product Description

The VALUE COLLECTION MSC-67600007 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright, uncoated finish. It measures 3/32 inch in diameter and 5/8 inch (0.6250 inches) in overall length, with a tight diameter tolerance of 0.0002 inches for precise alignment and repeatable fitment. Pull out dowel pins are designed to be driven or pressed into a mating bore and extracted without damaging the assembly, making them well suited for fixtures, jigs, dies, and precision-assembled components. Machinists, tool and die makers, and maintenance technicians install these pins in applications where frequent disassembly is required.

This pin is used in light-duty precision alignment applications where corrosion resistance is a priority. The 18-8 stainless steel construction makes it appropriate for environments exposed to moisture, mild chemicals, or food-adjacent conditions. Typical install scenarios include fixture plates, die sets, machine frames, and fabricated assemblies requiring consistent part registration. The small diameter and short length suit close-tolerance work in compact component layouts. Sold individually; minimum order quantity is 100 pieces.

Key Features

• 18-8 stainless steel construction provides corrosion resistance in wet or chemically active environments
• Bright, uncoated finish maintains precise dimensional integrity at the bore interface
• Diameter tolerance of 0.0002 inches supports tight-fit alignment in precision assemblies
• Pull out design allows removal without impact or disassembly damage to the host component
• Compact 3/32 inch diameter x 5/8 inch length suits close-clearance fixture and die work

Compatibility

Designed as a standard pull out dowel pin for use in precision fixture plates, jigs, dies, and machine assemblies requiring a 3/32 inch diameter bore with close-tolerance alignment.

Installation Notes

Installation is typically performed by machinists or tool and die technicians using a press or mallet with a proper-diameter punch to avoid deforming the pin head. The receiving bore should be reamed to the appropriate tolerance to achieve the intended fit class. De-energize or lock out any associated machine before installing or removing locating pins per applicable OSHA lockout/tagout procedures. Inspect the bore and pin for burrs or contamination before seating to preserve the 0.0002-inch diameter tolerance.
