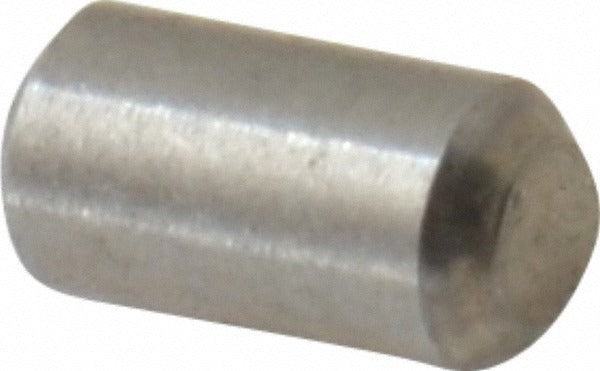

Value Collection MSC-67599761 Dowel Pin 3/32 X 3/16 in Ss 18-8

Product Description

The VALUE COLLECTION MSC-67599761 is a standard pull out dowel pin designed for precision alignment and locating applications in machined assemblies. Measuring 3/32 inch in diameter and 3/16 inch in overall length, this pin is manufactured from Grade 18-8 stainless steel with a bright finish. The tight diameter tolerance of 0.0002 inches ensures accurate, repeatable fit in close-tolerance bores. Pull out dowel pins include a threaded extraction feature that allows removal from blind holes without damage to the mating workpiece. Machinists, tool-and-die makers, and maintenance technicians working with precision fixtures and jigs commonly specify this style of pin.

This dowel pin is suited for use in precision fixturing, tooling plates, machine frames, and assembly jigs where accurate part alignment is required. The 18-8 stainless steel construction provides good corrosion resistance, making it appropriate for light wash-down environments or applications where mild corrosion protection is needed. Its compact size, 3/32 inch diameter by 3/16 inch length, fits shallow-bore applications where standard solid dowels cannot be extracted without a puller relief.

Key Features

• Standard pull out style with threaded extraction relief for removal from blind holes
• Grade 18-8 stainless steel construction for corrosion resistance
• Bright finish with a diameter tolerance of 0.0002 inches for close-tolerance fits
• Compact dimensions: 3/32 inch diameter, 3/16 inch overall length
• Lightweight at approximately 0.0004 pounds per pin

Compatibility

Designed as a standard pull out dowel pin for use in precision machined fixtures, tooling plates, and alignment applications requiring a 3/32 inch diameter locating pin with a 3/16 inch engagement depth.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or mallet with an appropriate-diameter punch. The mating bore should be reamed to the correct tolerance class for a slip or press fit before installation. Always relieve stored energy in the assembly and secure the workpiece before driving pins. Use the threaded extraction feature and a properly sized puller screw when removing the pin from a blind hole to prevent bore damage.
