Value Collection MSC-67599480 Pull Out Dowel Pin Ss 18-8

Product Description

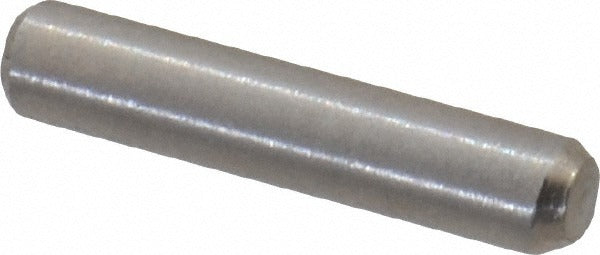

The VALUE COLLECTION MSC-67599480 is a standard pull out dowel pin machined from 18-8 stainless steel with a bright finish. At 1/16 inch in diameter and 5/16 inch in overall length, this pin is designed for precision alignment and positioning applications where corrosion resistance and tight tolerances are required. The diameter tolerance is held to 0.0002 inches, making it suitable for close-tolerance assemblies. Machinists, toolmakers, and maintenance technicians working with jigs, fixtures, molds, or mechanical assemblies are the typical installers for this type of component.

This pin is used in light-duty alignment and locating applications across manufacturing, tooling, and industrial maintenance environments. Its small diameter makes it appropriate for precision fixtures, instrument housings, and assemblies where minimal material displacement is needed. The 18-8 stainless steel construction resists corrosion in moderately wet or chemical-exposed environments. These pins are sold individually but carry a minimum order quantity of 100 units, making them suited for shop stock or production-run replenishment rather than single-unit service calls.

Key Features

• 18-8 stainless steel construction for corrosion resistance in demanding environments
• Bright finish for consistent surface quality and dimensional integrity
• Diameter tolerance of 0.0002 inches for close-tolerance precision fits
• Compact 1/16 inch diameter by 5/16 inch length for tight-clearance assemblies
• Pull out style for easier removal during disassembly of fixtures or tooling

Compatibility

Designed as an OEM-style replacement or shop-stock locating pin for precision fixtures, jigs, molds, and mechanical assemblies requiring a 1/16 inch diameter pull out dowel pin in stainless steel.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using a press or hand driver sized appropriately for the pin diameter. Before installing or removing, ensure the assembly or fixture is fully de-energized and secured. Pull out dowel pins are designed for extraction with a standard pin puller or threaded extraction tool — do not use impact methods that could damage the bore or surrounding material. Follow applicable shop standards and engineering drawings for hole tolerance and fit class.
