Value Collection MSC-04519286 Spiral Point Tap 12-28 Unf

Product Description

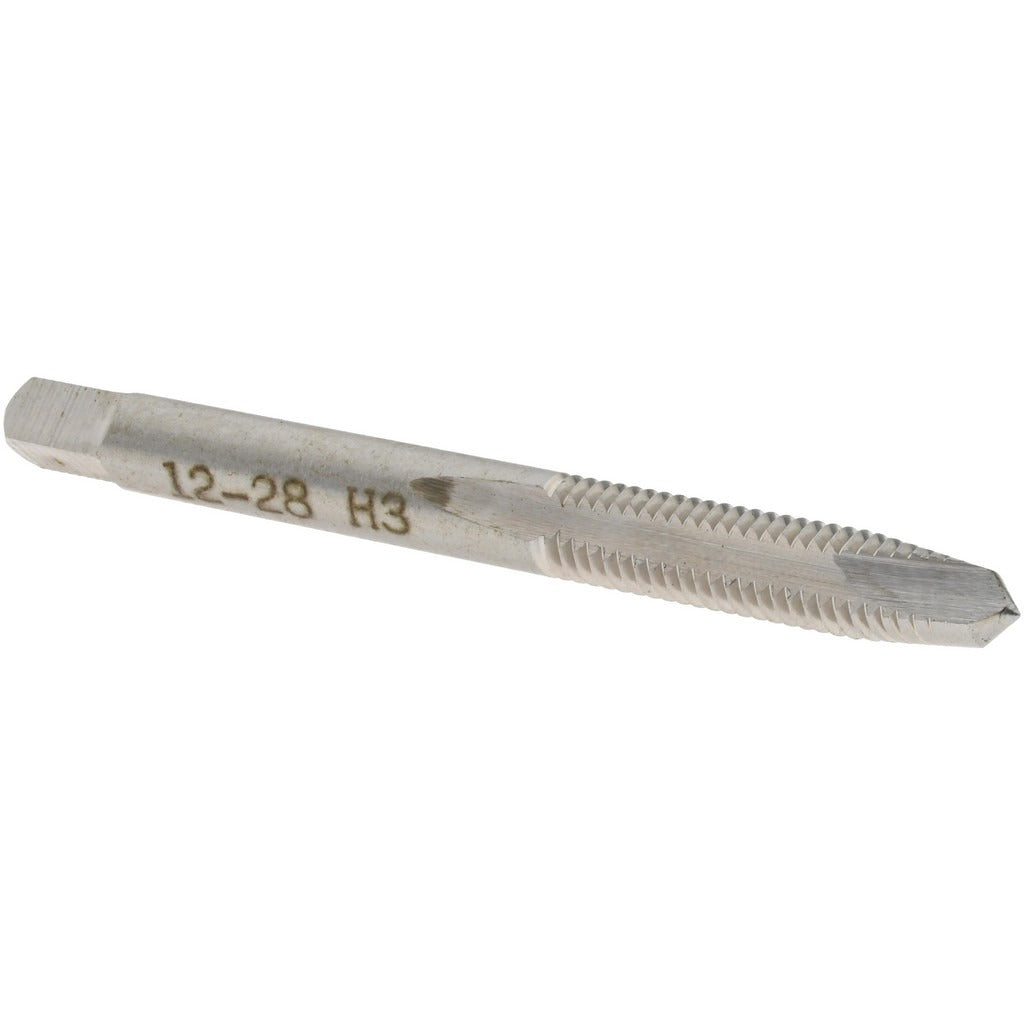

The VALUE COLLECTION MSC-04519286 is a spiral point tap designed for cutting 12-28 UNF threads in through-hole applications. Manufactured from high speed steel (HSS) with a bright, uncoated finish, this plug-chamfer tap drives chips forward ahead of the cutting zone, keeping flutes clear and reducing the risk of thread damage during tapping operations. It carries an H3 thread limit and is rated for 2B and 3B class of fit, covering both general-purpose and closer-tolerance threading work. With 2 flutes and a 15/16-inch thread length, it suits production and maintenance tapping in a range of materials.

This tap is intended for right-hand threading in through-holes where chip evacuation is the priority. It is commonly used in machining, fabrication, and maintenance-repair-operations (MRO) environments where 12-28 UNF fastener threads are required. The plug chamfer provides a progressive entry angle suitable for most through-hole work on the bench or in a drill press or CNC tapping setup. Machinists, tool-and-die technicians, and maintenance mechanics are the typical users.

Key Features

• 12-28 UNF thread form for fine-pitch through-hole tapping
• Plug chamfer for progressive thread engagement and easy starting
• Spiral point geometry pushes chips forward, away from the cutting edges
• H3 thread limit for 2B and 3B class of fit tolerances
• High speed steel construction for general-purpose tapping performance
• Bright, uncoated finish — suitable for use with a wide range of cutting fluids

Compatibility

Designed as an OEM-style replacement or standard shop tap for any application requiring a 12-28 UNF, 2-flute, plug-chamfer spiral point tap with an H3 thread limit and 2B/3B class of fit.

Installation Notes

Secure the workpiece fully before tapping to prevent movement. Use an appropriate cutting fluid or tapping compound for the material being threaded. Align the tap perpendicular to the workpiece surface to maintain thread accuracy. Replace the tap if it shows signs of dulling, chipping, or excessive torque during cutting to avoid thread damage or tap breakage.
