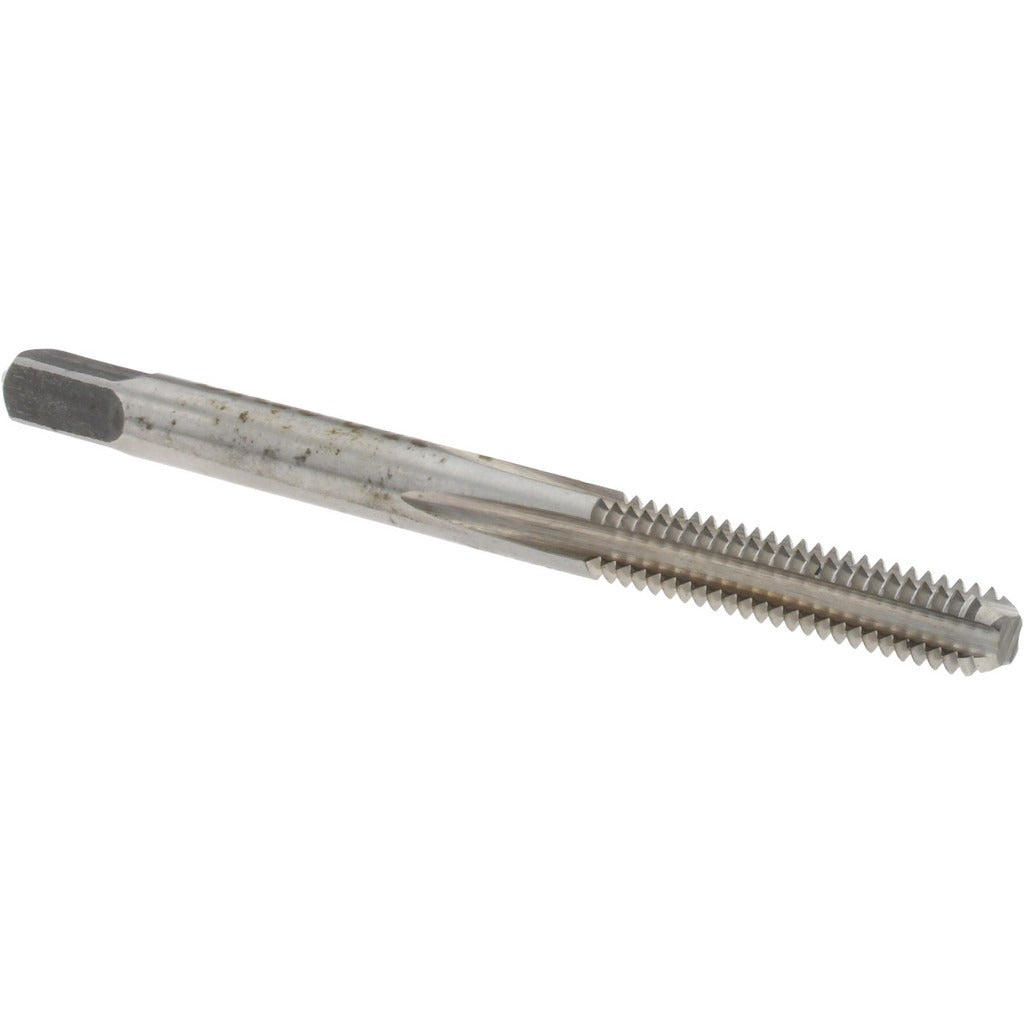

Value Collection MSC-04437331 Straight Flute Tap 8-32 Unc

Product Description

The VALUE COLLECTION MSC-04437331 is a straight flute bottoming tap designed for cutting internal 8-32 UNC threads in blind and through holes where full thread depth close to the bottom is required. Manufactured from high-speed steel with a bright, uncoated finish, it features four flutes and an H3 thread limit for close tolerance work. The tap has a 0.75 inch thread length and a 2.125 inch overall length. It is suited for use in machine shop, maintenance, and production environments where consistent 2B class of fit threads are needed in steel, aluminum, cast iron, and similar materials.

This bottoming tap is used in applications where a spiral-point or plug tap has already started the thread and full engagement to the bottom of a blind hole is required. It is appropriate for both manual tapping with a tap wrench and machine tapping operations at moderate speeds. The right-hand thread direction covers the vast majority of standard fastener applications. At 0.06 pounds, the tool is lightweight and easy to handle during bench or fixture work. No coolant-through feature is present, so flood or brush-applied cutting fluid should be used when tapping harder materials.

Key Features

• Bottoming chamfer allows threading to within 1-2 threads of a blind hole bottom
• High-speed steel construction provides good wear resistance across a range of workpiece materials
• H3 thread limit ensures consistent 2B class of fit for standard fastener clearance
• Four straight flutes aid chip clearance in through-hole and shallow blind-hole applications
• Bright, uncoated finish allows easy visual inspection of cutting edge condition
• Right-hand thread direction compatible with standard 8-32 UNC hardware

Compatibility

Designed for cutting 8-32 UNC internal threads with a 2B class of fit. Suitable for use with standard tap wrenches and machine tap holders accepting the appropriate shank size for this tool class.

Installation Notes

This tap is installed by a machinist or maintenance technician using a tap wrench, tapping head, or CNC machine tool equipped for tapping. Always drill the correct tap drill size for 8-32 UNC before starting the thread. Apply cutting fluid appropriate to the workpiece material to extend tap life and improve thread finish. Inspect the cutting edges for wear or chipping before each use, and do not apply excessive torque, particularly when tapping near the bottom of a blind hole with a bottoming chamfer.
