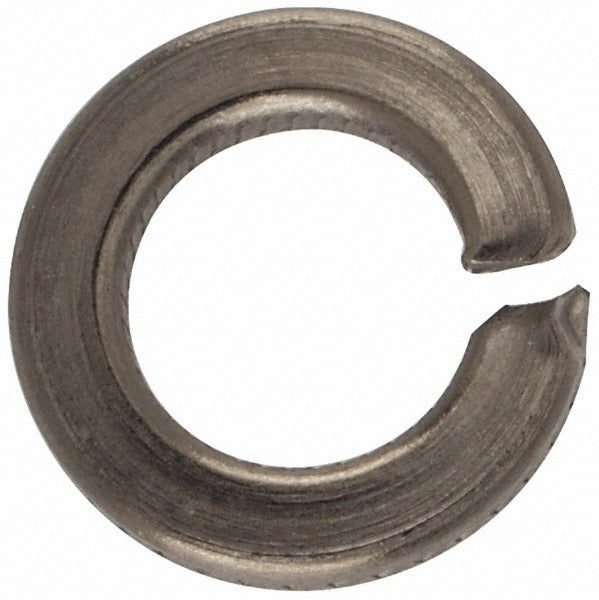

Value Collection MS35338-156 Split Lock Washer No. 8

Product Description

The VALUE COLLECTION MS35338-156 is a No. 8 split lock washer manufactured from 400 series stainless steel with a passivated finish. Designed to prevent fastener loosening under vibration and dynamic load, the split lock washer works by biting into the bearing surface and the underside of the fastener head as the assembly is torqued. The inside diameter ranges from 0.167 to 0.174 inches, the maximum outside diameter is 0.293 inches, and the nominal thickness is 0.04 inches. This washer meets MS35338 military specification requirements. Maintenance technicians, millwrights, and assembly professionals working on corrosion-resistant fastener assemblies are the primary installers.

This washer is suited for use in industrial, marine, HVAC, and mechanical assemblies where a No. 8 screw fastener requires locking action and corrosion resistance. The 400 series stainless steel base material combined with a passivated finish makes it appropriate for environments with moderate corrosive exposure. It is supplied individually but carries a minimum order quantity of 100 pieces, making it practical for bulk service inventory or production line use.

Key Features

• Meets MS35338 military specification for split lock washers
• 400 series stainless steel construction with passivated finish for corrosion resistance
• Inside diameter range of 0.167 to 0.174 inches fits standard No. 8 screw shank
• Maximum outside diameter of 0.293 inches
• Nominal thickness of 0.04 inches
• Split helical design provides locking force under vibration and torque load

Compatibility

Designed as a replacement or stock fastener component for No. 8 screw assemblies requiring MS35338-specification split lock washers in inch-measurement fastener systems.

Installation Notes

Installation is performed by hand or with standard hand tools as part of a fastener assembly. Always ensure the mating surface and fastener threads are clean and free of debris before assembly. De-energize or lock out any equipment before servicing fastened assemblies on live mechanical or electrical systems. Do not reuse split lock washers that have been fully compressed or show signs of cracking.
