Value Collection MS35206-265 10-24 X 3/4 in Pan Head Screw

Product Description

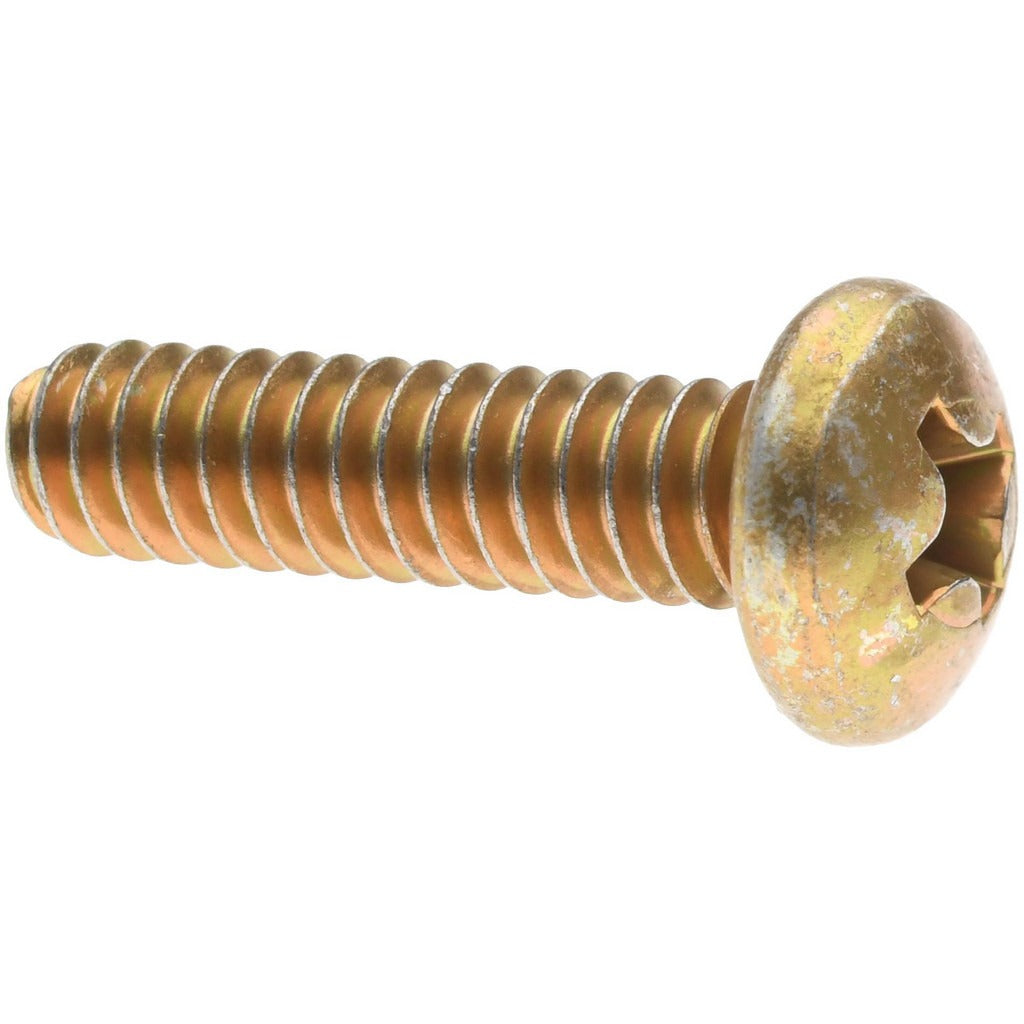

The VALUE COLLECTION MS35206-265 is a 10-24 threaded machine screw with a pan head and Phillips drive, designed for general-purpose mechanical fastening in industrial and military-specification applications. Manufactured from steel with a yellow cadmium finish, this screw meets the MS35206 fastener standard, which governs dimensional and material requirements for inch-series machine screws used in aerospace, defense, and related equipment assembly. The 3/4-inch length is measured under the head. The cadmium plating provides corrosion resistance and lubricity, making this screw suitable for environments where bare steel hardware would be inadequate.

This screw is used across a wide range of assembly applications including control panels, electrical enclosures, HVAC equipment cabinets, and mechanical sub-assemblies where an MS-spec fastener is required. The pan head profile provides a low-profile bearing surface with a wide diameter relative to the screw shank, distributing clamp load without a washer. The Phillips drive is compatible with standard No. 2 Phillips bits and drivers. This SKU ships in multiples of 100 pieces per order.

Key Features

• Meets MS35206 military fastener standard for inch-series machine screws
• 10-24 unified coarse thread for reliable engagement in standard tapped holes
• Pan head with Phillips drive — compatible with No. 2 Phillips bits
• Steel construction with yellow cadmium finish for corrosion resistance
• Material Grade 3 designation per applicable fastener classification
• No washer included or required — pan head provides direct bearing surface

Compatibility

Designed as an MS35206-standard replacement or service fastener for applications requiring a 10-24 pan head Phillips machine screw with yellow cadmium finish per inch-system specifications.

Installation Notes

Installation is performed with a No. 2 Phillips screwdriver or power driver at appropriate torque for 10-24 thread class. Do not exceed the rated clamp load for the Grade 3 material designation. Cadmium-coated fasteners should be handled in accordance with applicable workplace safety guidelines, as cadmium dust and fumes are hazardous. Always verify thread engagement depth in the mating component before applying torque.
