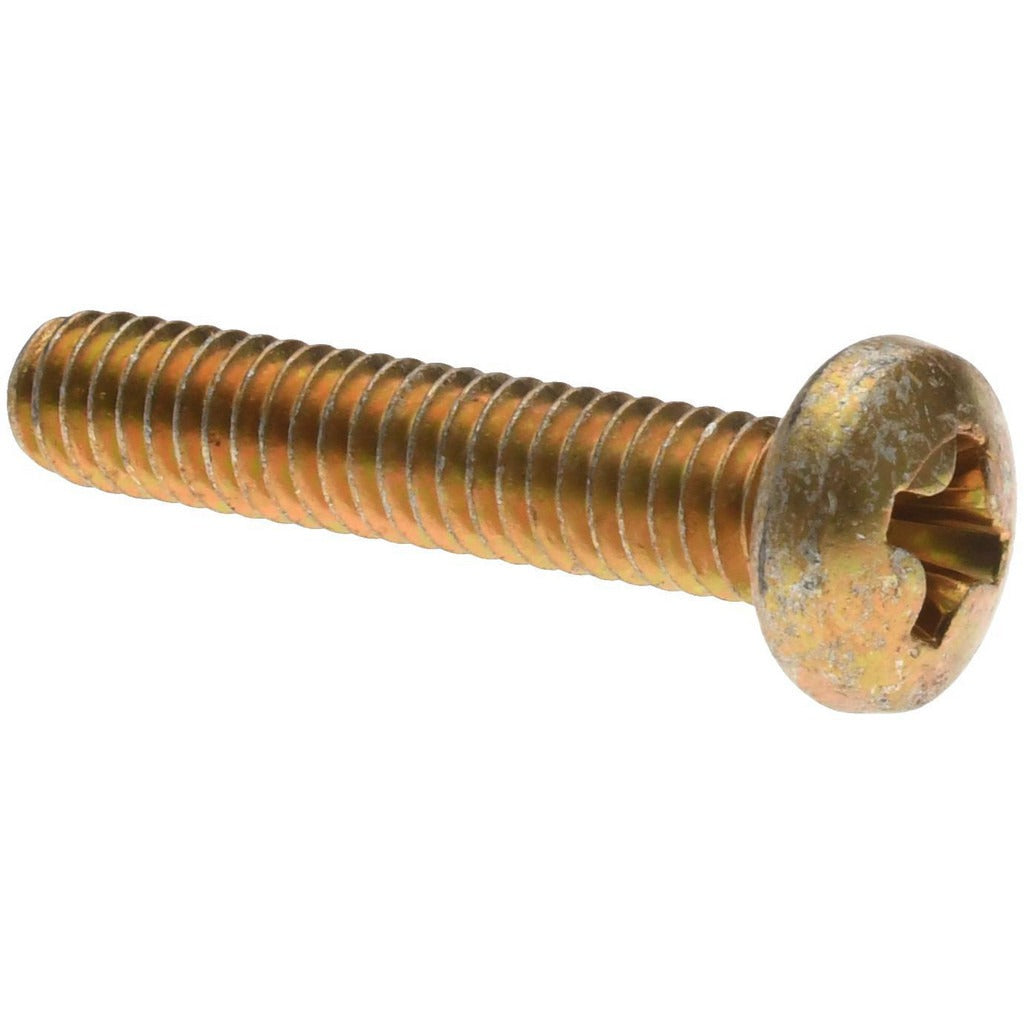

Value Collection MS35206-248 8-32 Pan Head Phillips Machine Screw

Product Description

The VALUE COLLECTION MS35206-248 is a pan head, Phillips drive machine screw conforming to the MS35206 fastener standard. Sized at 8-32 thread with a 7/8-inch length under head, this screw is manufactured from steel with a yellow cadmium finish and meets Grade 3 material requirements. The yellow cadmium coating provides corrosion resistance suitable for general industrial and military-specification applications. Designed for use without a washer, this fastener is well suited to assembly work where a low-profile pan head and reliable Phillips drive engagement are required. Sold in minimum order quantities of 100 pieces.

This fastener is appropriate for light-to-medium duty mechanical assembly applications across industrial, commercial, and government procurement environments. The MS35206 standard designation makes it a common choice in aerospace-adjacent, defense, and general MRO (maintenance, repair, and operations) applications where standardized fastener specifications are required. It is installed using standard Phillips screwdrivers or power drivers with a matching bit. The 8-32 thread size is widely used in electrical enclosures, panel assemblies, and equipment housings.

Key Features

• 8-32 thread size with 7/8-inch length under head for consistent, standardized fitment
• Pan head profile provides a low-profile, wide bearing surface without a washer
• Phillips drive type compatible with standard and power-drive installation tools
• Steel construction with yellow cadmium finish for corrosion resistance
• Meets MS35206 fastener standard and Grade 3 material specification
• Sold in 100-piece minimum order quantities to support production and MRO needs

Compatibility

Designed as an MS35206-standard replacement or specification-compliant fastener for applications requiring 8-32 pan head Phillips machine screws in steel with yellow cadmium finish.

Installation Notes

Installation is performed by mechanical assemblers or technicians using a Phillips screwdriver or power driver fitted with the appropriate bit. Ensure mating threads are clean and free of debris before driving the fastener. Do not overtorque, as steel machine screws at this size are susceptible to thread stripping in softer mating materials. Follow applicable assembly drawings or torque specifications provided by the equipment manufacturer.
