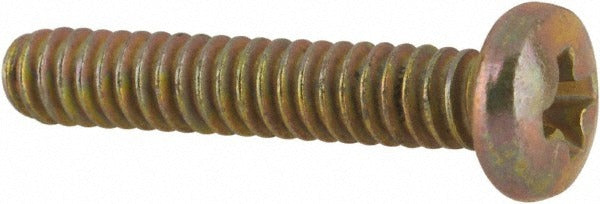

Value Collection MS35206-218 Pan Head Machine Screw

Product Description

The VALUE COLLECTION MS35206-218 is a 4-40 pan head machine screw manufactured to MS35206 fastener standard. The screw measures 5/8 inches in length under head and features a Phillips drive for quick installation with standard hand tools or a power driver. Constructed from steel with a yellow cadmium finish, it carries a Grade 3 material designation. This screw is sized in the inch measurement system and is sold in lots that meet a minimum order quantity of 100 pieces per order. It is a reliable general-purpose threaded fastener suited for light-duty mechanical assemblies across industrial, electrical, and electronic applications.

This screw is used in applications where a 4-40 thread form is required and a low-profile pan head is preferred for flush or near-flush surface clearance. The yellow cadmium finish provides corrosion resistance in controlled environments. Typical install scenarios include panel assemblies, control enclosures, instrument housings, and other light-gauge metal or plastic substrates where a fine thread pattern and compact head diameter are needed. Maintenance technicians, electricians, and assemblers working with mil-spec or commercial assemblies will encounter this fastener in both original manufacturing and field repair contexts.

Key Features

• 4-40 thread size with 5/8-inch length under head for consistent engagement depth
• Pan head profile provides a wide bearing surface without a countersunk recess
• Phillips drive compatible with standard hand screwdrivers and power drivers
• Yellow cadmium finish offers corrosion resistance in light-duty environments
• Manufactured to MS35206 military fastener standard for dimensional consistency
• Steel construction with Grade 3 material designation

Compatibility

Designed as an OEM-style replacement or direct-fit fastener for assemblies specifying a 4-40 pan head Phillips machine screw to the MS35206 fastener standard in the inch measurement system.

Installation Notes

Install using a Phillips head screwdriver or bit driver sized for a No. 4 screw. Ensure the mating thread is clean and free of debris before driving to prevent cross-threading on the fine 4-40 thread form. Do not over-torque, as the small thread diameter is susceptible to stripping in soft substrates. Follow applicable assembly specifications for torque requirements when working in regulated environments.
