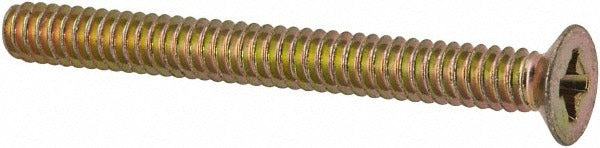

Value Collection MS24693-S35 Flat Head Phillips Machine Screw

Product Description

The VALUE COLLECTION MS24693-S35 is a 6-32 flat head Phillips machine screw designed for general-purpose fastening in light industrial, MRO, and OEM assembly applications. Built to steel with a yellow cadmium finish for corrosion resistance, this screw meets Military Standard MS24693 dimensional requirements. The overall length is 1-3/8 inches, measured from the top of the head to the tip. Grade 3 construction provides adequate tensile strength for standard fastening tasks. The flat head profile sits flush with the mating surface when countersunk correctly. Phillips drive is compatible with standard manual and power drivers. Technicians and assemblers working on panel assemblies, enclosures, and equipment housings will find this a reliable, code-conforming fastener.

This screw is suited for metal and rigid-material assemblies where a flush, low-profile fastener is required. Common applications include electrical enclosures, control panels, sheet metal assemblies, and general equipment fabrication. The MS24693 fastener standard makes this screw appropriate for aerospace-adjacent, military, and government-specification work where dimensional conformance to that standard is required. It installs using a standard Phillips driver bit. Minimum order quantity is 100 pieces per order, sold as a package quantity of 1.

Key Features

• 6-32 UNC thread size for compatibility with standard #6 tapped holes
• 1-3/8 inch overall length with length-under-head also measured at 1-3/8 inches
• Flat head profile allows flush countersunk installation in mating material
• Phillips drive accepts standard manual or power driver bits
• Yellow cadmium finish provides corrosion protection on steel base material
• Conforms to MS24693 military fastener standard for specification-controlled applications

Compatibility

Designed for use in any application requiring a 6-32 UNC flat head Phillips machine screw conforming to the MS24693 fastener standard, including electrical enclosures, control panels, and sheet metal assemblies.

Installation Notes

Installation is performed by threading into a pre-tapped or nut-retained 6-32 hole using a Phillips screwdriver or compatible power driver bit. Countersink the mating material to the correct angle to achieve a proper flush seating of the flat head. Do not overtighten, as thread stripping is possible in thin or soft mating materials. Minimum order quantity requirements apply — confirm order quantities before purchasing to meet the 100-piece minimum.
