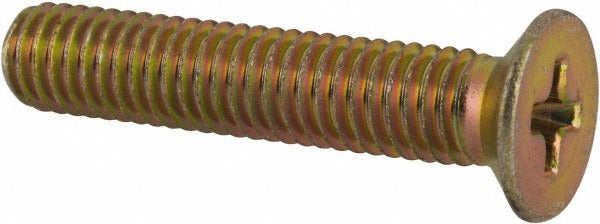

Value Collection MS24693-S276 Flat Head Phillips Screw

Product Description

The VALUE COLLECTION MS24693-S276 is a 10-32 x 1 inch overall length flat head Phillips drive machine screw manufactured to Fastener Standard MS24693. Made from Grade 3 steel with a yellow cadmium finish, this screw is designed for threaded fastening applications where a flush or countersunk surface is required. The flat head profile seats into a countersunk hole to sit level with or below the mating surface. The yellow cadmium coating provides corrosion resistance and is a recognized finish in aerospace and military-standard fastener specifications. Installation requires a Phillips drive bit or screwdriver matched to the No. 10 head size.

This screw is suited for mechanical assemblies, enclosures, brackets, and panel mounting applications across HVAC, electrical, and general trade work where an MS-standard fastener is called for. The 10-32 thread pitch is a fine unified thread commonly used in sheet metal assemblies and control panel fabrication. Length is measured as overall length at 1 inch, which is also the length under head for a flat head fastener. Sold as a single unit with a minimum order quantity of 100 pieces per order.

Key Features

• 10-32 fine unified thread, 1 inch overall length
• Flat head profile for flush or countersunk installations
• Phillips drive for quick installation with standard tools
• Grade 3 steel construction with yellow cadmium finish for corrosion resistance
• Conforms to MS24693 fastener standard
• No washer — fastener seats directly into countersunk surface

Compatibility

Designed as an OEM-style replacement or direct-fit fastener for any threaded 10-32 countersunk application requiring an MS24693-specification flat head Phillips machine screw.

Installation Notes

Installation is performed using a Phillips drive bit sized for a No. 10 fastener. De-energize any electrical panel or equipment before fastening into enclosures or control boards. Do not over-torque into thin sheet metal or plastic standoffs as thread stripping may occur. Verify the mating hole is properly countersunk to match the flat head angle before driving the screw flush.
