Value Collection MS24693-C98 Flat Head Machine Screw

Product Description

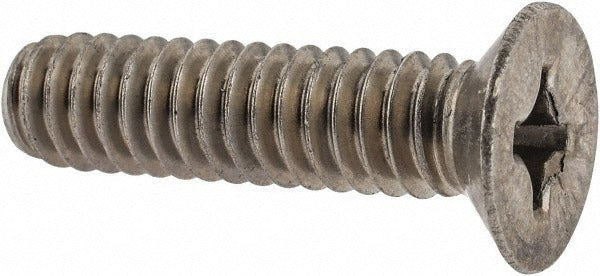

The VALUE COLLECTION MS24693-C98 is a 1/4-20 flat head Phillips drive machine screw manufactured from 18-8 stainless steel. It measures 1 inch in overall length with a 1 inch length under head and conforms to the MS24693 fastener standard. The flat head profile sits flush with the mating surface when fully driven, making it well suited for applications where a low-profile or countersunk finish is required. This screw is sized for use with standard 1/4-20 tapping or through-hole patterns and is installed using a common Phillips screwdriver or bit. It weighs approximately 0.0116 pounds per piece and ships without a washer.

This fastener is appropriate for general mechanical assembly, panel mounting, and equipment fabrication work across HVAC, electrical, and light industrial applications. The 18-8 stainless steel construction provides corrosion resistance suitable for both indoor and moderate outdoor environments. It is used wherever a countersunk, flush-mount fastener is called for in 1/4-20 threaded assemblies. Sold individually, with a minimum order quantity of 100 pieces.

Key Features

• Flat head profile for flush or countersunk installation
• Phillips drive accepts standard Phillips bits and screwdrivers
• 18-8 stainless steel construction for corrosion resistance
• Conforms to MS24693 fastener standard
• 1/4-20 thread size, 1 inch overall length
• No washer included — bare fastener, ready for direct installation

Compatibility

Designed as a standard MS24693-series flat head Phillips machine screw for use in any 1/4-20 threaded hole or clearance hole application requiring a countersunk or flush-mount fastener.

Installation Notes

Install using a Phillips screwdriver or power driver with a Phillips bit sized for the drive. A countersunk or chamfered hole is required to seat the flat head flush with the mating surface. Ensure the mating thread or nut is clean and free of debris before driving. Do not overtorque stainless fasteners, as galling can occur — use appropriate anti-seize compound when assembling stainless-to-stainless joints.
