Value Collection MS24693-C76 Machine Screw 10-24 X 1 in

Product Description

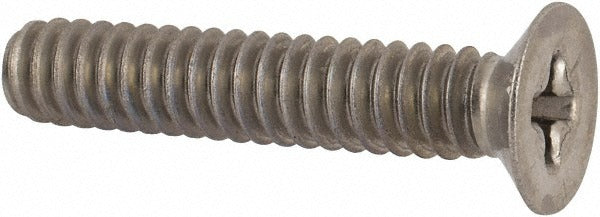

The VALUE COLLECTION MS24693-C76 is a 10-24 unified coarse thread machine screw designed for general-purpose fastening in metal fabrication, maintenance, and light industrial applications. It features a flat head profile with a Phillips drive and measures 1 inch overall length. Manufactured from 18-8 stainless steel, this screw provides reliable corrosion resistance in wet or mildly corrosive environments. The flat head sits flush with the mating surface when countersunk, making it well-suited for assemblies where a smooth finished face is required. This fastener conforms to the MS24693 military fastener standard, which specifies dimensional and material requirements for flat head machine screws in inch series.

This screw is used across a broad range of trade and light industrial applications including HVAC panel assembly, electrical enclosures, plumbing fixture mounting, and general equipment maintenance. The 10-24 thread size is one of the most common machine screw sizes encountered in the field. The Phillips drive is compatible with standard hand and power screwdrivers. Installers working on control panels, access covers, or sheet metal assemblies will find this a familiar and versatile fastener. Minimum order quantity is 100 pieces per order.

Key Features

• 10-24 unified coarse thread for broad tool and hardware compatibility
• Flat head profile for flush-mount, countersunk installations
• Phillips drive accepts standard No. 2 screwdrivers and power bits
• 18-8 stainless steel construction for corrosion resistance in damp or mildly corrosive environments
• Conforms to MS24693 military fastener standard for dimensional consistency
• 1 inch overall length with full 1 inch length under head measurement

Compatibility

Designed as a standard MS24693-series flat head machine screw in inch sizing, compatible with any 10-24 threaded insert, nut, or tapped hole requiring a countersunk flat head fastener per the MS24693 specification.

Installation Notes

Installation is performed with a No. 2 Phillips screwdriver or matching power bit. The receiving material must be countersunk to the appropriate angle to seat the flat head flush. Ensure the mating hole is tapped to 10-24 UNC prior to installation. Avoid overtightening in soft or thin materials to prevent thread stripping or surface damage.
