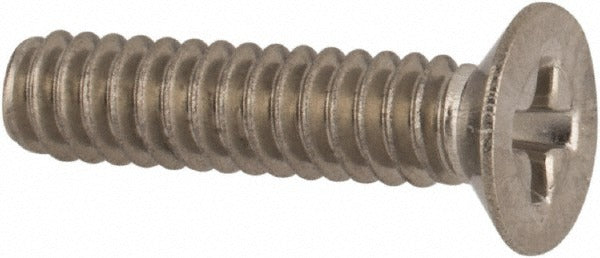

Value Collection MS24693-C6 4-40 Flat Head Phillips Machine Screw

Product Description

The VALUE COLLECTION MS24693-C6 is a 4-40 unified coarse thread machine screw built to MS24693 military fastener standard. It measures 0.5 inches overall length with a flat head and Phillips drive. The base material is 18-8 stainless steel with a passivated finish, which removes free iron from the surface to improve corrosion resistance. This screw is suited for precision assembly work in aerospace, electronics, military, and industrial applications where a flush seating fastener is required. Machinists, assemblers, and maintenance technicians working to federal or military spec requirements are the typical installers.

This screw is used in applications requiring a countersunk flat head for flush or below-surface installation. The 4-40 thread size is common in electronics enclosures, instrument panels, and light-duty mechanical assemblies. The MS24693 fastener standard makes it applicable in military and aerospace-adjacent manufacturing environments. Minimum order quantity is 100 pieces per package.

Key Features

• 4-40 unified coarse thread for compatibility with standard 4-40 tapped holes
• Flat head with Phillips drive for flush or countersunk installation
• 18-8 stainless steel construction for corrosion resistance in demanding environments
• Passivated finish removes surface iron to enhance oxidation resistance
• Conforms to MS24693 military fastener standard
• Sold without washer, overall length 0.5 inches

Compatibility

Designed as an OEM-style and military-spec replacement fastener for any application requiring a 4-40 x 0.5-inch flat head Phillips machine screw conforming to the MS24693 standard.

Installation Notes

Install using a Phillips screwdriver or bit sized for the No. 4 screw head. Countersink the mating material to the appropriate flat head angle before driving to achieve flush seating. Stainless steel fasteners are susceptible to galling during installation — apply an appropriate anti-seize compound when threading into stainless tapped holes. Torque to the value specified in the applicable assembly drawing or fastener specification document.
