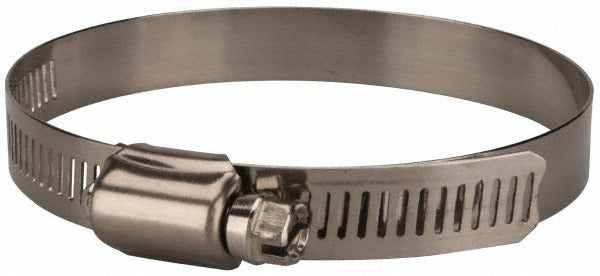

Value Collection MS01D7195 Worm Gear Clamp Sae 52

Product Description

The VALUE COLLECTION MS01D7195 is a worm drive gear clamp rated SAE Size 52, designed for securing hose, duct, or tubing connections in plumbing, HVAC, and general mechanical applications. The clamp features a stainless steel band that spans a clamping diameter range of 2.795 inches to 3.75 inches, making it well suited for 2-3/4 to 3-3/4 inch nominal connections. The band is 1/2 inch wide and constructed from 201-grade stainless steel, providing corrosion resistance in wet or humid service environments. Plumbers, HVAC technicians, and mechanical contractors install this clamp type during new construction and retrofit work where a reliable, adjustable band clamp is required.

This worm gear clamp is appropriate for residential and light commercial installations where hose or flexible duct terminations need a secure, adjustable connection. Typical applications include coolant hose connections, drain hose fittings, flexible duct collars, and similar mechanical assemblies that fall within the 2-3/4 to 3-3/4 inch diameter range. The worm drive mechanism allows incremental tightening with a standard screwdriver or nut driver, making field adjustment straightforward during installation or service calls.

Key Features

• SAE Size 52 worm drive clamp with a clamping range of 2.795 to 3.75 inches in diameter
• 201-grade stainless steel band resists corrosion in wet and humid service conditions
• 1/2 inch band width distributes clamping force evenly across the hose or fitting surface
• Worm drive mechanism adjusts with a standard flathead screwdriver or 5/16 inch hex nut driver
• Lightweight at 0.03 pounds, minimizing installation burden in tight access areas

Compatibility

Designed as an OEM-style replacement or standard service clamp for any application requiring an SAE Size 52 worm gear clamp on connections with an outside diameter between 2-3/4 and 3-3/4 inches.

Installation Notes

A licensed plumber, HVAC technician, or qualified mechanical contractor should install this clamp in systems subject to pressure or regulated code compliance. Depressurize and power down the associated system before removing or repositioning any hose or duct connection. Do not overtighten the worm drive screw, as excessive torque can deform the band or damage soft hose material. Follow applicable IPC, IFGC, or local mechanical codes for clamp placement and spacing requirements.
