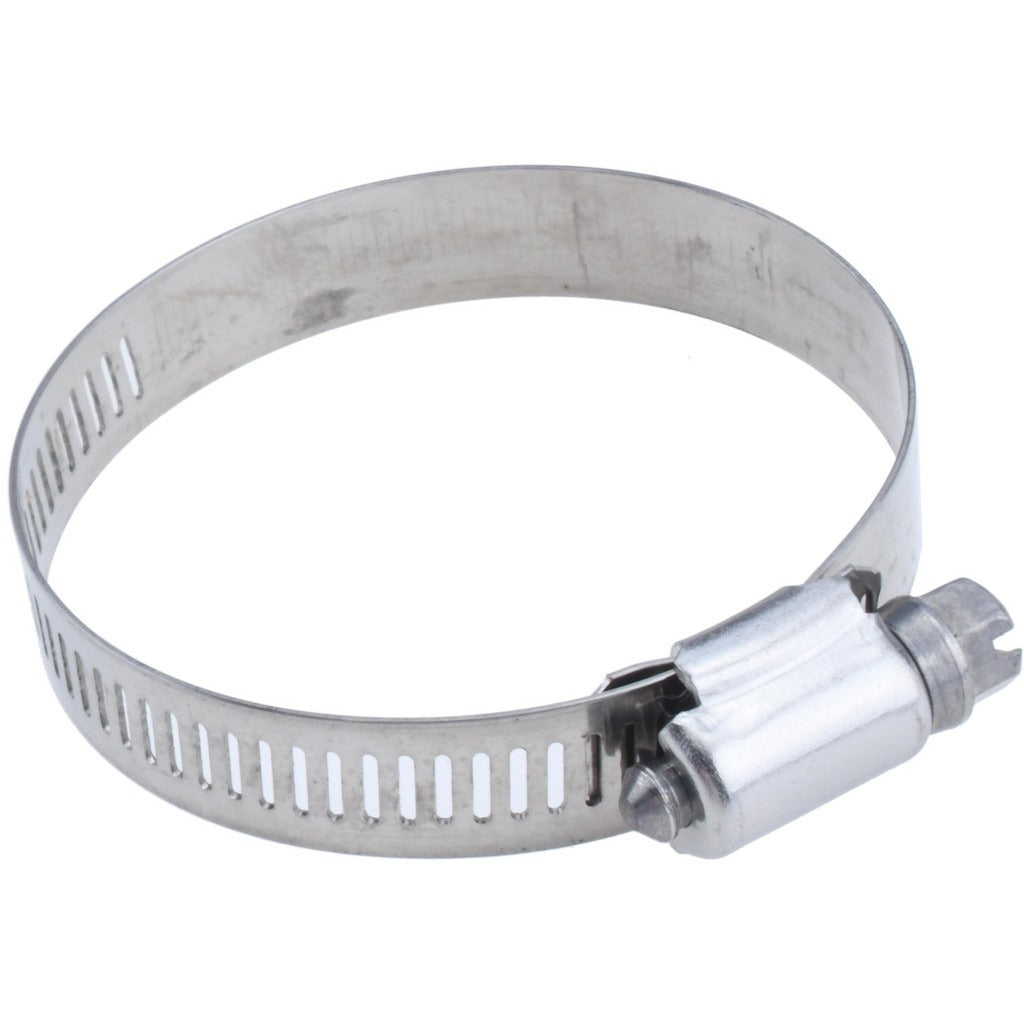

Value Collection MS01D4064 Worm Gear Clamp Sae 32

Product Description

The VALUE COLLECTION MS01D4064 is a worm drive hose clamp rated to SAE Size 32, designed for securing hoses, tubing, and fittings in plumbing, HVAC, and general mechanical applications. The stainless steel band spans a clamping range of 1.5 inches to 2.5 inches in diameter, making it well suited to a wide range of hose and pipe connections within that window. The 0.5-inch-wide band distributes clamping load evenly to reduce bite and deformation on softer hose materials. With a worm drive mechanism, the clamp provides precise tension adjustment using a standard slotted or hex-head screwdriver or nut driver. Plumbers, HVAC technicians, and mechanical contractors install this clamp type on water, drain, vent, and low-pressure fluid lines.

This clamp is used in residential and light commercial settings wherever a reliable, adjustable band connection is needed on hose or flexible tubing in the 1.5-inch to 2.5-inch outside diameter range. Typical applications include connecting rubber couplings on drain and waste lines, securing radiator and coolant hoses, attaching flexible duct connectors, and fastening irrigation or water supply hose to barbed fittings. The stainless steel construction makes it appropriate for damp or corrosive environments, including under-sink plumbing, mechanical rooms, and outdoor installations.

Key Features

• SAE Size 32 worm drive clamp with a 1.5-inch to 2.5-inch clamping diameter range
• Grade 201 stainless steel band resists corrosion in wet and outdoor environments
• 0.5-inch-wide band distributes clamping force to reduce hose deformation
• Worm drive mechanism allows fine torque adjustment with a slotted screwdriver or nut driver
• Lightweight at 0.03 pounds per clamp

Compatibility

Designed as a standard SAE 32 worm gear clamp suitable for hoses and flexible tubing with an outside diameter between 1.5 inches and 2.5 inches across plumbing, HVAC, and mechanical applications.

Installation Notes

This clamp is installed by plumbers, HVAC technicians, and general mechanical contractors. Before installing on any pressurized or fluid-carrying line, shut off the water supply or system pressure and allow the line to depressurize completely. Position the clamp over the hose before seating the hose on the fitting, then tighten the worm screw until the band seats firmly against the hose without over-tightening, which can cut into softer hose material. Follow applicable IPC or local plumbing code requirements for clamp type and spacing on drain and supply connections.
