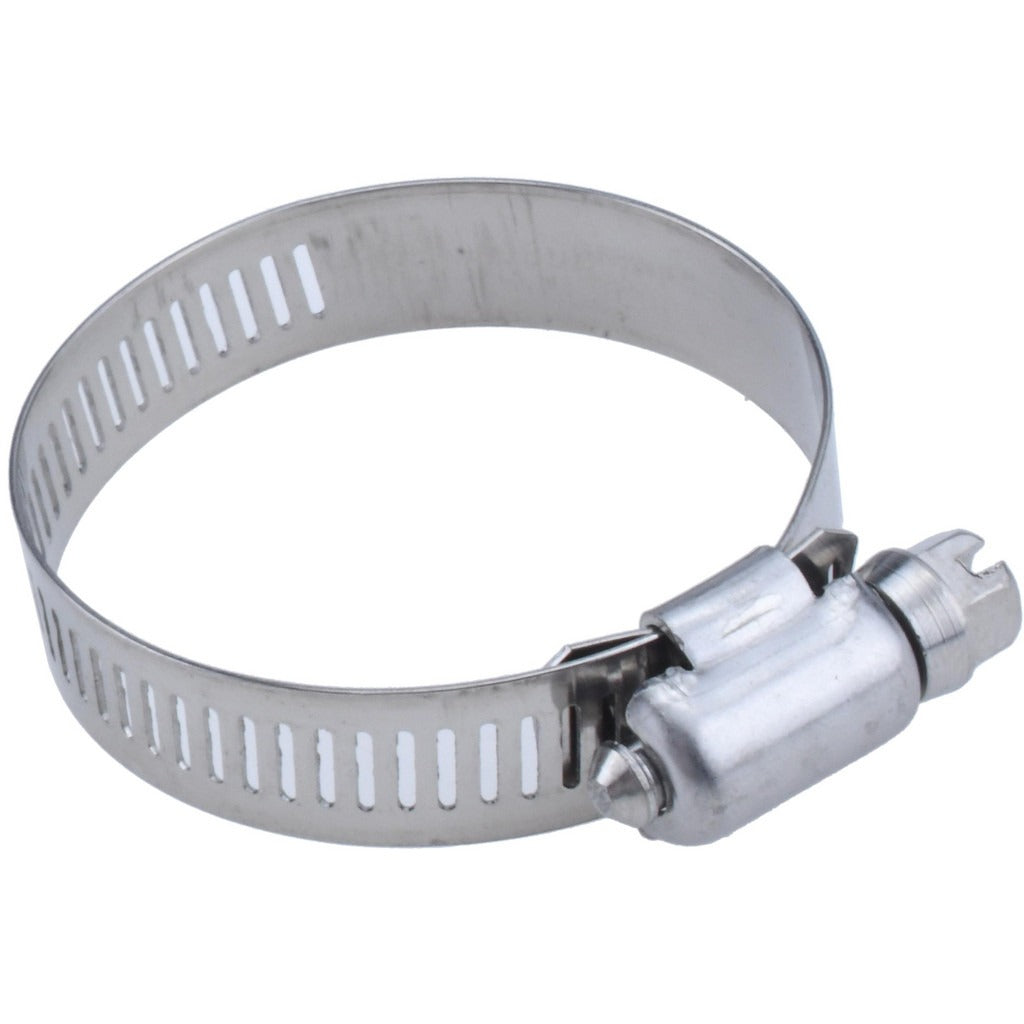

Value Collection MS01D2751 Worm Gear Clamp Sae 24

Product Description

The VALUE COLLECTION MS01D2751 is a worm gear clamp rated SAE Size 24, designed for securing hose connections across a clamping range of 1 inch to 2 inches in diameter. The band is constructed from 201 grade stainless steel, measuring 0.5 inches wide, delivering corrosion resistance suitable for wet, chemical-exposed, or outdoor service environments. This clamp operates via a worm drive screw mechanism that applies even radial pressure around the hose or tubing, reducing the risk of leaks at the joint. HVAC technicians, plumbers, and general mechanical contractors regularly specify worm gear clamps of this type for hose-to-fitting connections on fluid and air handling systems.

This clamp is suited for residential and light commercial applications where a reliable, adjustable hose clamp is required. Typical uses include securing radiator hoses, coolant lines, drain lines, condensate discharge tubing, and similar soft-tubing connections. The SAE 24 size rating covers connections in the 1 to 2 inch diameter range, making it a common choice for standard pipe and hose sizes encountered in plumbing rough-in, HVAC condensate management, and equipment installation work.

Key Features

• SAE Size 24 with a clamping range of 1 inch to 2 inches in diameter
• 201 grade stainless steel band and housing for corrosion resistance
• Band width of 0.5 inches for broad contact and even clamping pressure
• Worm drive screw mechanism allows tool-adjustable, repeatable tightening
• Lightweight at 0.03 pounds per unit, suitable for tight installation spaces

Compatibility

Designed as a standard SAE 24 worm gear clamp for hose and tubing connections with an outside diameter between 1 inch and 2 inches across plumbing, HVAC, and mechanical applications.

Installation Notes

Installation is performed with a standard flat-blade or hex-head screwdriver or nut driver. Shut off fluid flow and depressurize the line before replacing or repositioning any hose clamp. Position the clamp at least one band-width back from the end of the fitting before tightening. Do not overtighten to the point of cutting into soft hose material; tighten until snug and leak-free seating is achieved.
