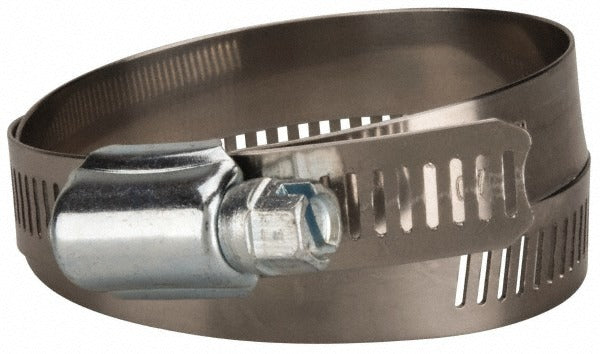

Value Collection MS01B76127B Worm Gear Clamp Sae 72

Product Description

The VALUE COLLECTION MS01B76127B is a worm gear clamp rated SAE Size 72, designed to secure hose and tubing connections across a clamping range of 3 to 5 inches in diameter. The band is constructed from 201-grade stainless steel and carbon steel, providing corrosion resistance suitable for a wide range of fluid and air transfer applications. At 0.5 inches wide, the band distributes clamping force evenly to prevent hose deformation. This clamp is commonly installed by plumbers, HVAC technicians, and mechanical service professionals in both residential and light commercial settings.

This worm gear clamp is suited for use on radiator hoses, heater hoses, coolant lines, duct connections, and general-purpose plumbing or HVAC applications where a reliable, adjustable band clamp is required. Its SAE 72 rating and 3 to 5 inch diameter range make it a standard fit for mid-size tubing and hose assemblies found in mechanical rooms, equipment rooms, and under-hood service environments.

Key Features

• SAE Size 72 worm drive clamp with a 3 to 5 inch clamping diameter range
• Band material: 201-grade stainless steel and carbon steel for corrosion resistance
• Band width of 0.5 inches for even pressure distribution along the hose bead
• Worm drive mechanism allows precise torque adjustment with a standard screwdriver or nut driver
• Sold individually, suitable for single-unit replacement or low-volume service work

Compatibility

Designed as a standard SAE 72 worm gear clamp for general-purpose use on hoses and tubing with an outside diameter between 3 and 5 inches in residential, commercial, and light industrial mechanical applications.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or mechanical service professionals. Shut off fluid flow and relieve any system pressure before removing or installing clamps. Position the clamp over the hose end so the band seats fully behind the fitting bead, then tighten the worm screw with a flat-blade screwdriver or a 5/16-inch hex nut driver until snug. Do not overtighten, as excessive torque can cut into hose material or distort the band.
