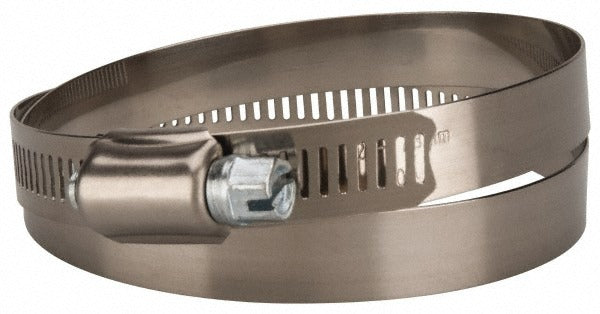

Value Collection MS01B127168 Worm Gear Clamp Sae 104

Product Description

The VALUE COLLECTION MS01B127168 is a worm gear clamp rated SAE Size 104, designed to secure hoses, tubing, and flexible connections in a wide range of trade and industrial applications. The band is constructed from 201-grade stainless steel and carbon steel, providing corrosion resistance alongside mechanical strength. It accommodates a clamping range of 5 inches to 7 inches in diameter and features a 0.5-inch-wide band. Plumbers, HVAC technicians, and general mechanical contractors install this clamp type when a reliable, adjustable circumferential seal is needed on flexible hose assemblies.

This clamp is suited for residential and light commercial plumbing, HVAC ductwork connections, radiator hoses, and similar applications where hose-to-fitting joints require consistent clamping pressure across a wide diameter range. The SAE 104 rating identifies the clamp size within the standard SAE worm gear clamp classification system, making cross-referencing and replacement straightforward on the job site.

Key Features

• SAE Size 104 worm drive clamp for a 5 to 7 inch clamping diameter range
• 201-grade stainless steel and carbon steel band construction
• 0.5-inch band width for even clamping load distribution
• Worm drive mechanism allows stepless diameter adjustment within range
• Suitable for hose, tubing, and flexible duct connections in plumbing and HVAC work

Compatibility

Designed as an OEM-style replacement or general-service worm gear clamp for hose and tubing connections requiring a 5 to 7 inch clamping diameter in plumbing, HVAC, and mechanical applications.

Installation Notes

Installation is typically performed by licensed plumbers, HVAC technicians, or pipefitters using a standard flat-head or nut-driver screwdriver to drive the worm gear. Shut off fluid flow and depressurize the line before removing any existing clamp or disturbing the hose connection. Position the clamp over the hose before seating the hose onto the fitting, then tighten evenly to seat the band without over-torquing. Follow applicable IPC or IFGC guidelines for the specific piping system being serviced.
