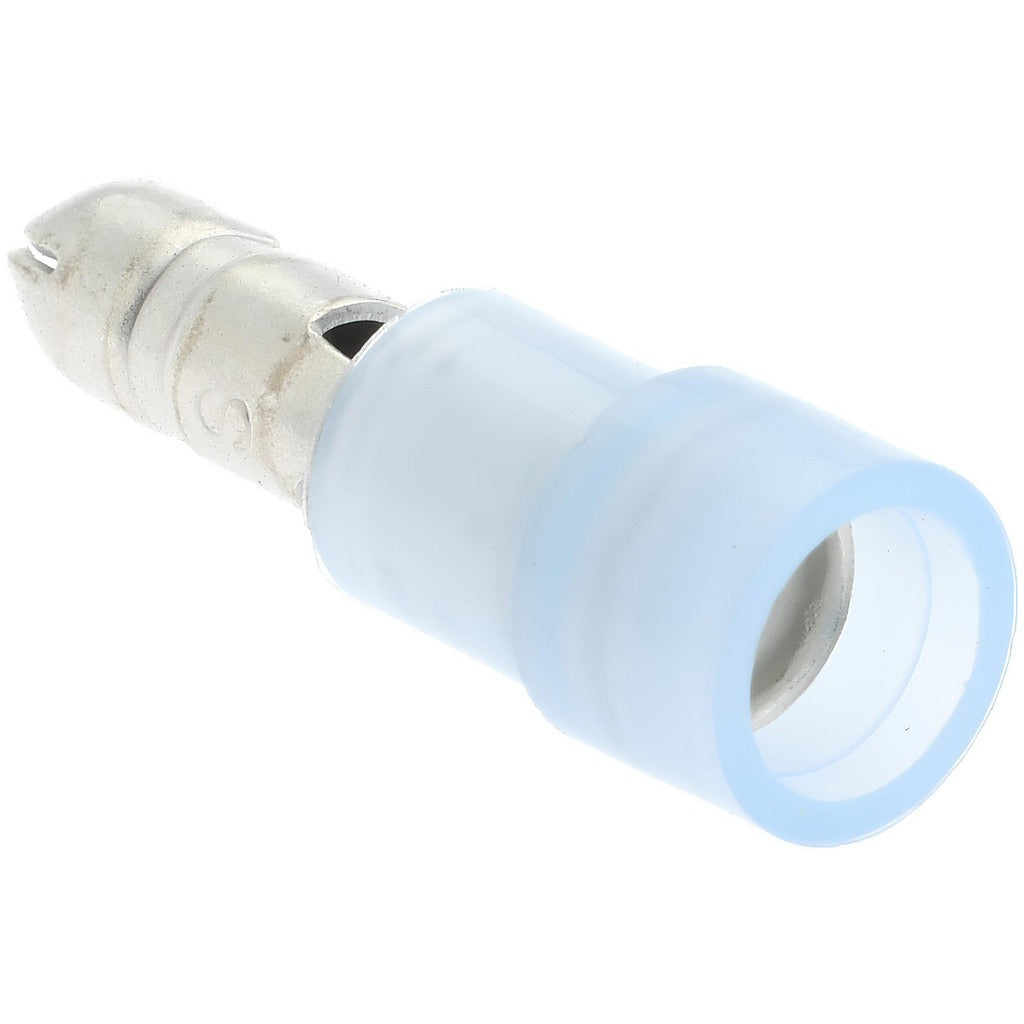

Value Collection MPNYD2-156-50PK Bullet Connector 16-14 Awg

Product Description

The VALUE COLLECTION MPNYD2-156-50PK is a double crimp bullet connector designed for 16 to 14 AWG wire and sold in a 50-piece pack. The connector body is brass with blue nylon insulation, providing a secure, color-coded termination in automotive, marine, and low-voltage electrical applications. The bullet diameter measures 0.157 inches (4 mm) and the bullet length is approximately 22.0 mm. The double crimp design engages both the wire conductor and the insulation jacket, creating a mechanically stable connection that resists pull-out under vibration and normal service loads. Meets UL Listed, cUL Listed, and RoHS compliance standards.

This connector is suited for residential, commercial, and light industrial wiring tasks where a quick-disconnect or inline bullet termination is needed on 16 to 14 AWG conductors (1.50 to 2.50 sq mm). Typical applications include control circuit wiring, automotive harness repair, trailer wiring, and panel feed connections in low-voltage systems. The blue color coding follows standard insulation convention for the 16 to 14 AWG range, making wire identification straightforward in crowded junction boxes or harnesses. The 50-piece pack quantity makes this connector practical for service techs who need consistent supply on repeat termination jobs.

Key Features

• Double crimp construction secures both the conductor and insulation jacket for pull-out resistance
• Brass contact material provides reliable conductivity and corrosion resistance
• Blue nylon insulation with color-coded sizing for 16 to 14 AWG wire
• Bullet diameter of 0.157 inches (4 mm) for standard bullet connector fitment
• UL Listed, cUL Listed, and RoHS Compliant
• Sold in a 50-piece pack to support production and service volume needs

Compatibility

Designed for use with 16 to 14 AWG (1.50 to 2.50 sq mm) stranded or solid copper conductors in standard double crimp bullet connector applications.

Installation Notes

Installation requires a ratcheting or non-ratcheting wire crimping tool rated for insulated connectors in the 16 to 14 AWG range. De-energize all circuits before terminating connectors and verify the conductor is stripped to the appropriate length to seat fully in the barrel before crimping. Do not solder over a crimped connection, as this can introduce brittleness at the joint. Follow applicable NEC guidelines for wire termination and insulation integrity in the circuit being serviced.
