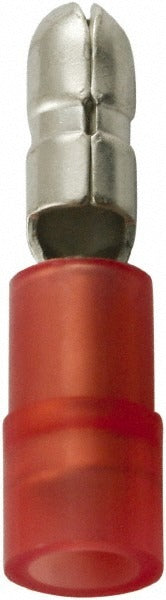

Value Collection MPNYD1-180 Bullet Connector 22-16 Awg

Product Description

The VALUE COLLECTION MPNYD1-180 is a double crimp bullet connector designed for wire termination in low-voltage electrical and automotive-style wiring applications. It accepts 22 to 16 AWG conductors, covering a cross-sectional wire range of 0.50 to 1.50 sq mm. The connector features a brass contact for reliable conductivity and a red nylon insulating sleeve that provides both physical protection and polarity-color identification. The bullet measures 0.177 inches in diameter and 0.866 inches in length. Electricians, automotive technicians, and HVAC service techs use this style of connector when making quick-disconnect terminations in panel wiring, harnesses, and control circuits.

This connector is suited for residential and light commercial wiring tasks where a compact, insulated bullet-style quick-disconnect is required. Typical applications include control wiring in HVAC equipment, automotive harness repair, appliance wiring, and general-purpose 12- to 24-volt circuit terminations. The red insulation color designates compatibility with the 22 to 16 AWG wire gauge range under standard wire-connector color coding conventions, making wire gauge identification straightforward during installation or service.

Key Features

• Double crimp design secures both the conductor and insulation jacket for a strain-relieved connection
• Brass contact material provides solid conductivity and corrosion resistance in typical indoor environments
• Red nylon insulation sleeve indicates 22 to 16 AWG wire range at a glance
• Bullet diameter of 0.177 inches (4.5 mm) fits standard bullet receptacle housings
• Bullet length of 0.866 inches suits compact terminal housings and panel wiring runs
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement or standard-stock bullet connector for 22 to 16 AWG wiring applications where a double crimp, red-insulated bullet terminal is specified.

Installation Notes

Installation is performed with a ratcheting or plier-style wire crimping tool sized for insulated terminals in the 22 to 16 AWG range. De-energize any circuit before making or breaking terminations. Strip wire insulation to the length specified by the connector barrel to ensure full conductor seating before crimping. Avoid over-crimping, which can crack the nylon sleeve and reduce insulation integrity.
