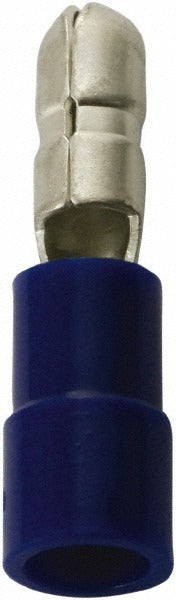

Value Collection MPNI2-180 Bullet Connector 16-14 Awg

Product Description

The VALUE COLLECTION MPNI2-180 is a crimp-style bullet connector rated for 16 to 14 AWG wire. It features a brass contact and a blue polycarbonate insulated body with a bullet diameter of 0.177 inches and a bullet length of 0.866 inches. This connector is designed for reliable electrical terminations in automotive, marine, HVAC control wiring, and general low-voltage applications. Electricians and equipment technicians use this type of connector to join or extend wire runs quickly without soldering. It meets RoHS compliance standards, making it suitable for use in environmentally regulated installations.

This bullet connector is suited for residential and light commercial wiring applications where 16 to 14 AWG conductors are used. Typical install scenarios include HVAC control circuits, appliance wiring, and automotive electrical systems. The blue insulation color provides a quick visual reference for wire gauge range during assembly and inspection. Compatible wire cross-section ranges from 1.50 to 2.50 square millimeters.

Key Features

• Crimp termination style for fast, tool-based installation without soldering
• Brass contact material for reliable conductivity and corrosion resistance
• Blue polycarbonate insulation for visual gauge identification
• Bullet diameter of 0.177 inches for standard mating connector fitment
• Bullet length of 0.866 inches providing secure mating depth
• RoHS compliant for use in environmentally regulated applications

Compatibility

Designed as a standard crimp bullet connector for use with 16 to 14 AWG wire, compatible with wire cross-sections of 1.50 to 2.50 square millimeters in typical low-voltage electrical wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or technician. De-energize the circuit completely before terminating or replacing any connector. Use a properly sized ratcheting crimp tool matched to the connector gauge range to achieve a full, gas-tight crimp. Inspect the insulation for damage after crimping and verify pull-out retention before returning the circuit to service.
