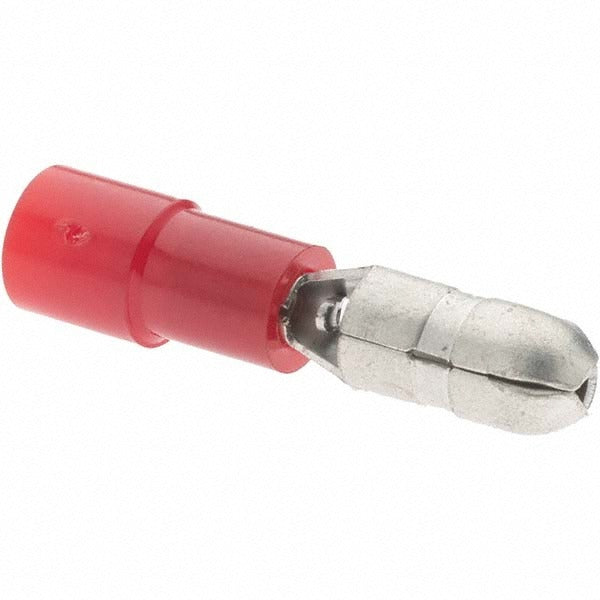

Value Collection MPNI1-180 Bullet Connector 22-16 Awg

Product Description

The VALUE COLLECTION MPNI1-180 is a single bullet connector designed for splicing and terminating copper wire in low-voltage electrical assemblies. It accepts wire gauges from 22 to 16 AWG (0.50 to 1.50 sq mm) and features a brass contact for reliable conductivity. The bullet measures 0.177 inches in diameter and 0.866 inches in length. Red PMMA (polymethyl methacrylate) insulation provides a visual gauge indicator and electrical isolation. Electricians and control-wiring technicians use this connector in panel wiring, control circuits, and field-termination work where a compact, insulated bullet-style connection is required.

This connector is suited for residential and light commercial electrical work, including HVAC control wiring, automotive harness repair, and low-voltage panel applications. Its red insulation identifies it as compatible with the 22-16 AWG wire range by standard color-coding convention. The brass contact ensures a stable, low-resistance connection in both vibration-prone and static installations. It is sold individually but requires a minimum order quantity of 50 units.

Key Features

• Accepts 22 to 16 AWG wire (0.50 to 1.50 sq mm)
• Brass contact material for reliable electrical conductivity
• 0.177-inch bullet diameter for standard bullet connector fitment
• 0.866-inch bullet length
• Red PMMA insulation for gauge identification and electrical isolation
• Compact form factor suited for tight wiring compartments

Compatibility

Designed as a standard insulated bullet connector for use with 22 to 16 AWG copper wire in low-voltage control and electrical termination applications.

Installation Notes

Installation is performed by qualified electricians or control-wiring technicians. De-energize the circuit completely before terminating or connecting any wiring. Use a proper wire stripper and insulated crimping tool rated for the AWG range being terminated to ensure a secure, gas-tight crimp. Follow applicable NEC guidelines for connector use in the specific circuit type and environment.
