Value Collection MPFI-1001500-100BX Machine Screw 10-24

Product Description

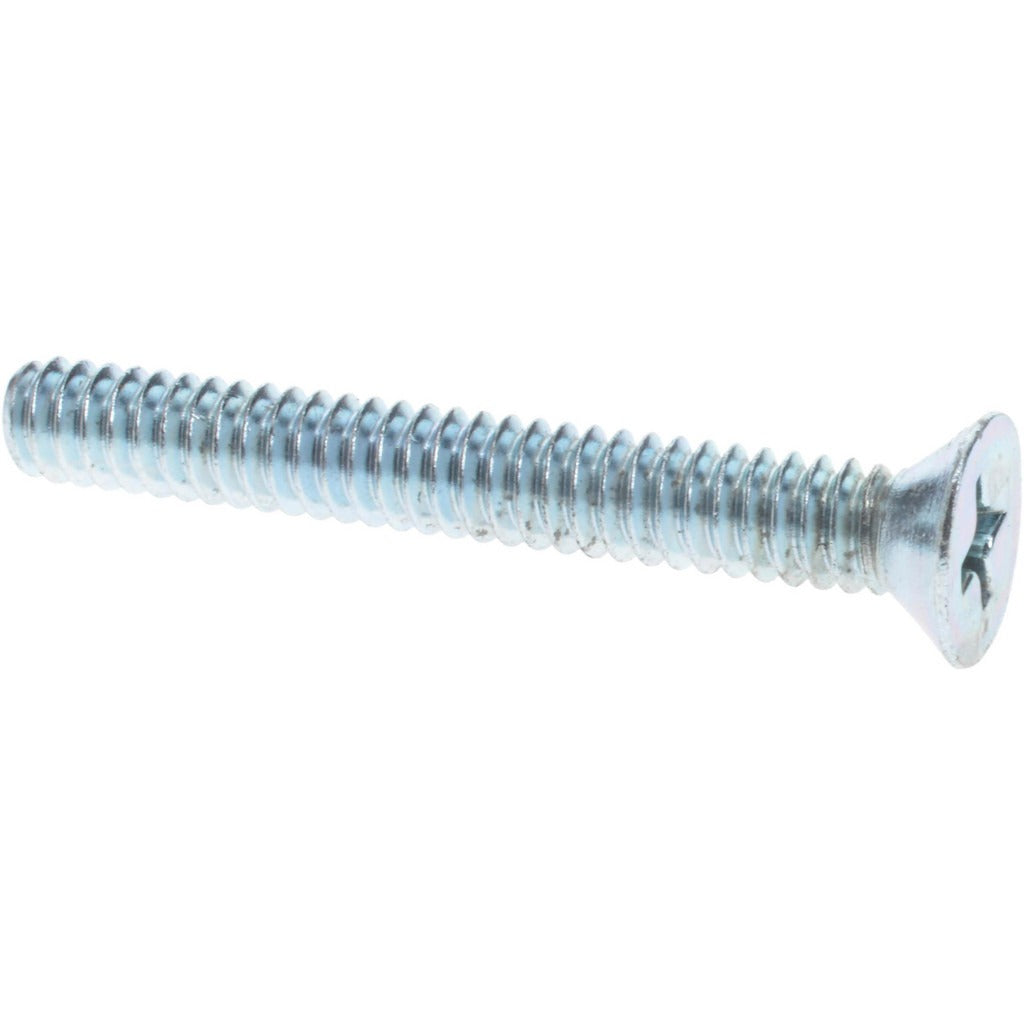

The VALUE COLLECTION MPFI-1001500-100BX is a 10-24 UNC machine screw designed for general-purpose fastening in metal, wood, and composite assemblies. The flat head profile sits flush with the mating surface when countersunk, and the Phillips drive allows for fast installation with standard hand or power tools. Built from Grade 2 steel with a zinc-plated finish, this screw offers reliable corrosion resistance in typical indoor and light-duty environments. Each box contains 100 screws at an overall length of 1.5 inches, making this an efficient bulk option for maintenance, fabrication, and equipment assembly work.

This screw is suited for residential, commercial, and light industrial applications where a 10-24 thread form is specified. Common use cases include panel fastening, equipment enclosure assembly, HVAC cabinet work, electrical panel mounting, and general mechanical assembly. The zinc plating provides a protective layer appropriate for dry to mildly humid environments. The length under head equals the overall length of 1.5 inches, confirming full-thread engagement through the fastened material with no grip length offset.

Key Features

• 10-24 UNC thread form for compatibility with standard 10-24 tapped holes and hex nuts
• Flat head profile countersinks flush with the work surface for a clean finish
• Phillips drive accepts standard No. 2 Phillips bits for hand or power installation
• Grade 2 steel construction provides adequate tensile strength for general-duty fastening
• Zinc-plated finish resists corrosion in dry and mildly humid conditions
• Sold in a box of 100 for efficient bulk stocking and service work

Compatibility

Designed as a standard 10-24 UNC machine screw compatible with any tapped hole, insert, or nut conforming to the 10-24 Unified National Coarse thread standard.

Installation Notes

Installation is performed with a No. 2 Phillips screwdriver or compatible bit driver. Ensure the receiving material is tapped to 10-24 UNC specifications or fitted with a matching nut before driving the screw. Countersink the receiving surface to the appropriate flat-head angle to achieve a flush finish. De-energize any electrical equipment and follow applicable NFPA 70 or equipment-specific lockout procedures before performing fastener work on live panels or enclosures.
