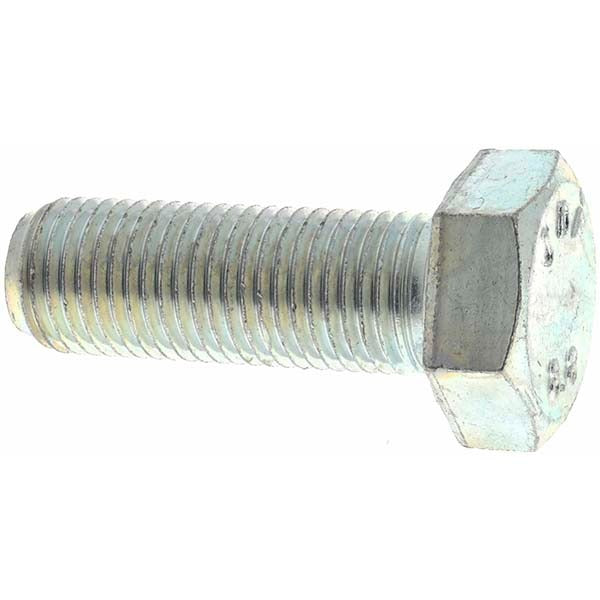

Value Collection MP42329 M14 X 1.50 X 40 Mm Hex Cap Screw 5-pack

Product Description

The VALUE COLLECTION MP42329 is a fully threaded hex head cap screw designed for metric fastening applications requiring reliable clamping strength. Manufactured from Grade 8.8 steel with a zinc-plated finish, this screw offers a strong combination of mechanical performance and corrosion resistance. The M14 x 1.50 thread profile, 40 mm length under head, and 22 mm hex drive size make it suitable for medium-to-heavy structural and mechanical assemblies. This fastener conforms to DIN 933 and ISO 4017 standards, ensuring dimensional consistency across sourcing. Sold in a pack of 5, it suits maintenance, fabrication, and equipment repair work across industrial and mechanical trades.

This screw is suited for use in general mechanical assemblies, industrial equipment, automotive applications, and structural fabrication where metric fine-thread fasteners are specified. Its fully threaded shank provides maximum thread engagement across the full grip length, making it well-suited for shorter clamp lengths or applications where a nut is threaded close to the head. Technicians and machinists working with metric hardware will find the Grade 8.8 tensile rating appropriate for demanding load-bearing connections.

Key Features

• M14 x 1.50 metric fine thread for increased thread engagement over coarse pitch
• 40 mm length under head with full threading along the entire shank
• Grade 8.8 steel construction — tensile strength rated for structural and mechanical service
• Zinc-plated finish provides basic corrosion protection in dry and mildly humid environments
• 22 mm hex drive compatible with standard metric wrenches and sockets
• Conforms to DIN 933 and ISO 4017 dimensional standards

Compatibility

Designed as a standard metric hex head cap screw per DIN 933 and ISO 4017 specifications, compatible with any M14 x 1.50 metric hex nut or tapped hole meeting the same thread standard.

Installation Notes

Installation is typically performed by mechanics, millwrights, or maintenance technicians using a standard 22 mm open-end, box, or socket wrench. Always verify that mating threads and tapped holes conform to M14 x 1.50 metric fine-thread specifications before installation. De-energize or depressurize the assembly as required by applicable safety procedures before fastener service. Do not exceed the rated mechanical load of Grade 8.8 hardware; consult the relevant torque specification table for the application.
