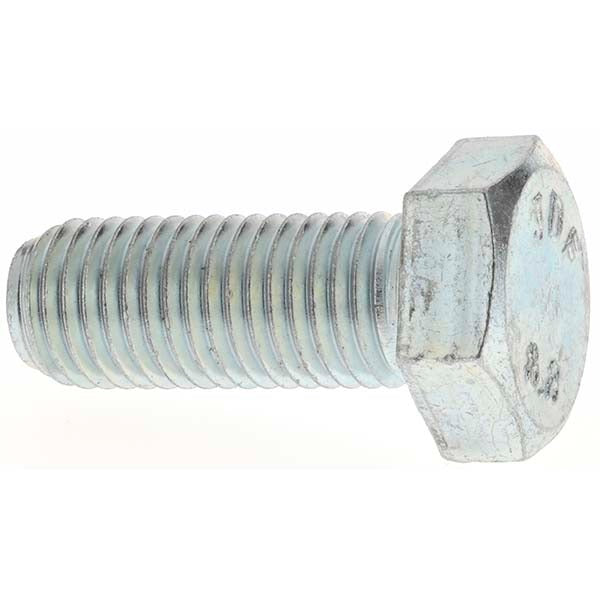

Value Collection MP42309 M12 X 1.50 X 30 Mm Hex Cap Screw

Product Description

The VALUE COLLECTION MP42309 is a fully threaded hex head cap screw designed for metric fastening applications in industrial, mechanical, and structural assembly work. Sized at M12 x 1.50 with a 30 mm length under head, it is manufactured from Grade 8.8 steel, which provides a tensile strength suited for high-load bolted joints. The zinc-plated finish offers a base level of corrosion resistance for general-purpose use. The 19 mm hex drive size is compatible with standard metric wrenches and sockets. Machinists, millwrights, maintenance technicians, and general fabricators are the typical installers for this fastener type.

This screw is suited for use in metric-dimensioned machinery, equipment frames, automotive components, and general fabrication assemblies where a fully threaded M12 fine-pitch fastener is specified. The fine 1.50 mm thread pitch, as opposed to the standard M12 x 1.75 coarse pitch, provides improved resistance to loosening under vibration and allows finer torque adjustment. It conforms to DIN 961 and ISO 8676 standards, making it appropriate for applications where those dimensional and mechanical property standards are required. Sold in a package quantity of 10.

Key Features

• Fully threaded along the entire shank length for maximum thread engagement
• Grade 8.8 steel construction provides reliable tensile and yield strength for structural bolted joints
• Fine thread pitch (1.50 mm) improves vibration resistance compared to coarse-pitch M12 fasteners
• Zinc-plated finish provides basic corrosion protection for indoor and light-duty applications
• Conforms to DIN 961 and ISO 8676 dimensional and mechanical standards
• 19 mm hex size accepts standard metric wrenches and impact sockets

Compatibility

Designed as a standard metric replacement or service fastener for any application specifying an M12 x 1.50 x 30 mm fully threaded hex head cap screw per DIN 961 or ISO 8676.

Installation Notes

Installation is performed by mechanical and maintenance trades using standard metric hand tools or power drivers with a 19 mm socket. Always verify that the mating threaded hole or nut matches the M12 x 1.50 fine thread specification before installation, as mixing fine and coarse pitch M12 components will damage threads. Apply torque values per the engineering specification for the joint being assembled, as Grade 8.8 fasteners have defined torque-tension relationships that vary by application. De-energize or lock out any equipment before replacing fasteners on live machinery per applicable safety procedures.
