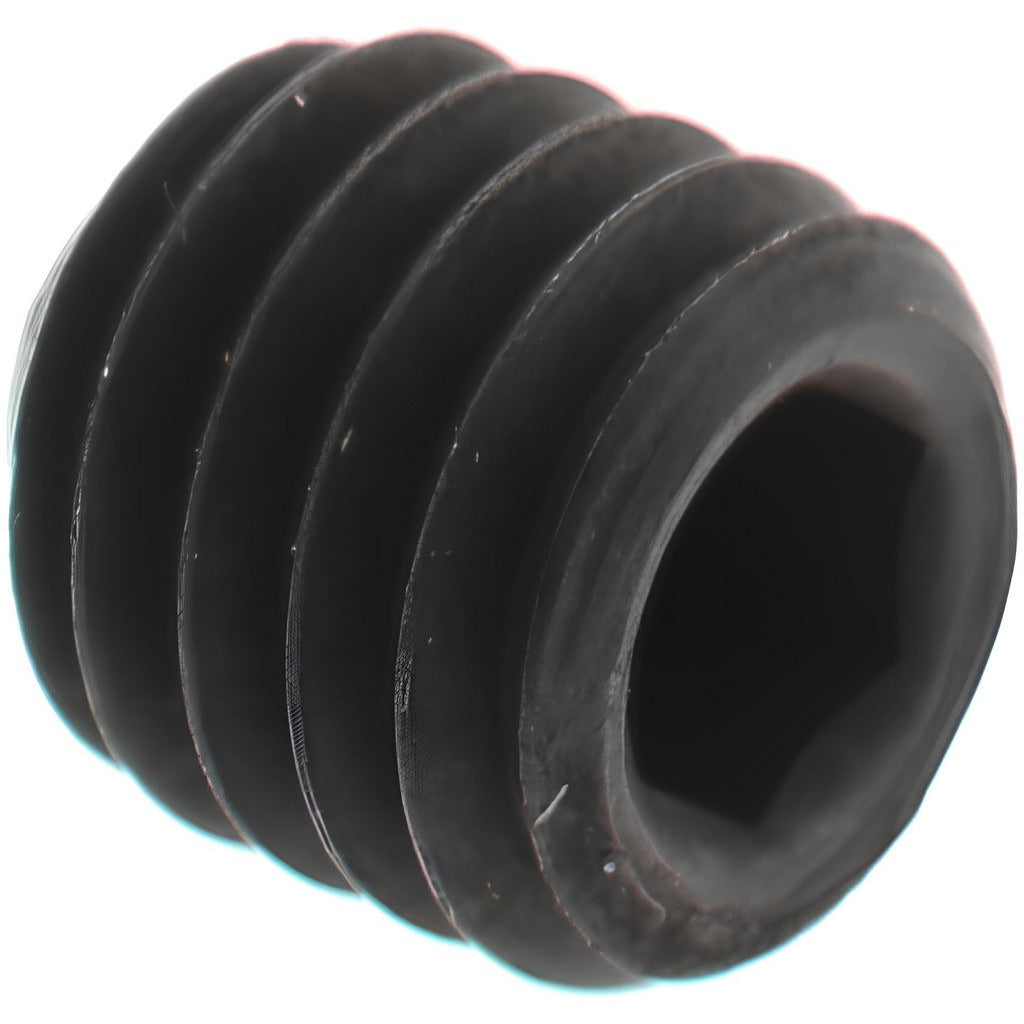

Value Collection MP40467 Cup Point Set Screw 10-32 Pack of 50

Product Description

The VALUE COLLECTION MP40467 is a cup point set screw designed for mechanical fastening applications where a threaded fastener must secure a component to a shaft or surface without a protruding head. This screw features a 10-32 UNF thread and measures 3/16 inches in overall length. It is driven by a 3/32-inch hex key and seats with a cup point that bites into the mating surface for reliable holding force. Made from Grade 8 alloy steel, it meets ASME/ANSI B18.3 and ASTM F912 standards. This package contains 50 pieces.

Cup point set screws like the MP40467 are used across a wide range of mechanical assemblies including HVAC equipment, motors, pulleys, collars, sprockets, and pump shafts. They are installed in applications where a flush or recessed fastener is required. The 10-32 UNF thread makes this screw suited to fine-thread tapped holes commonly found in light industrial and mechanical equipment assemblies.

Key Features

• Cup point tip digs into shaft material for strong rotational and axial holding
• 10-32 UNF thread for use in fine-thread tapped applications
• 3/16-inch overall length for compact, flush-mounted fastening
• Grade 8 alloy steel construction for high tensile and shear strength
• Driven by standard 3/32-inch hex key
• Meets ASME/ANSI B18.3 and ASTM F912 standards
• Pack of 50 pieces

Compatibility

Designed as a standard 10-32 UNF cup point set screw suitable for fine-thread tapped holes in mechanical assemblies, motors, collars, pulleys, and similar components requiring a headless fastener.

Installation Notes

Set screws are typically installed by machinists or mechanical technicians using a 3/32-inch hex key or Allen wrench. De-energize any motor or mechanical assembly and relieve all load before replacing or tightening set screws. Ensure the tapped hole is clean and free of debris before installation. Do not overtighten, as cup point set screws can damage shaft surfaces if excessive torque is applied without proper specification guidance.
