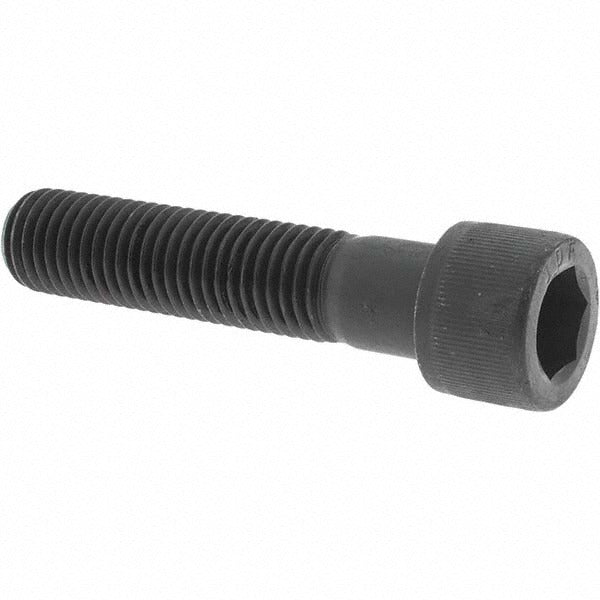

Value Collection MP33698-1 Hex Socket Cap Screw 3/4-10 Unc

Product Description

The VALUE COLLECTION MP33698-1 is a hex socket cap screw designed for high-strength bolted connections in mechanical, industrial, and structural assemblies. It features a 3/4-10 UNC thread with a 3.5-inch length under head and is partially threaded, making it suited for applications where precise clamping load and thread engagement depth matter. The 5/8-inch hex drive socket head allows for high torque application using standard Allen or hex key tooling. Manufactured from alloy steel with a black oxide finish, this fastener delivers solid corrosion resistance for indoor and light-duty industrial environments. It conforms to ASME/ANSI B18.3 and ASTM A574 standards.

This cap screw is used in general mechanical assembly, machine building, equipment mounting, and maintenance repair operations where UNC coarse-thread fasteners are specified. The partial threading provides a smooth shank section under the head, which is common in applications requiring dowel-like alignment or shear load distribution. Machinists, millwrights, maintenance technicians, and industrial assemblers typically install this fastener in steel-to-steel and steel-to-plate connections. The minimum order quantity is 5 pieces.

Key Features

• 3/4-10 UNC coarse thread for reliable thread engagement in standard tapped holes
• 3.5-inch length under head with partial threading for shank clearance and shear load applications
• 5/8-inch hex socket drive for high-torque installation with Allen or hex key tools
• Alloy steel construction meets ASTM A574 high-strength fastener requirements
• Black oxide finish provides mild corrosion and abrasion resistance
• Conforms to ASME/ANSI B18.3 dimensional standards

Compatibility

Designed as a standard replacement or general-use hex socket cap screw for applications specifying 3/4-10 UNC coarse thread, compatible with any standard tapped hole or nut meeting ASME/ANSI B18.3 dimensional requirements.

Installation Notes

Installation is typically performed by machinists, millwrights, or maintenance technicians using a 5/8-inch hex key or Allen driver. De-energize and lock out all equipment before fastener service per applicable OSHA lockout/tagout procedures. Do not exceed the rated installation torque for the fastener grade, and verify thread engagement depth before applying final load. Inspect threads on both the fastener and mating component for damage or contamination before assembly.
