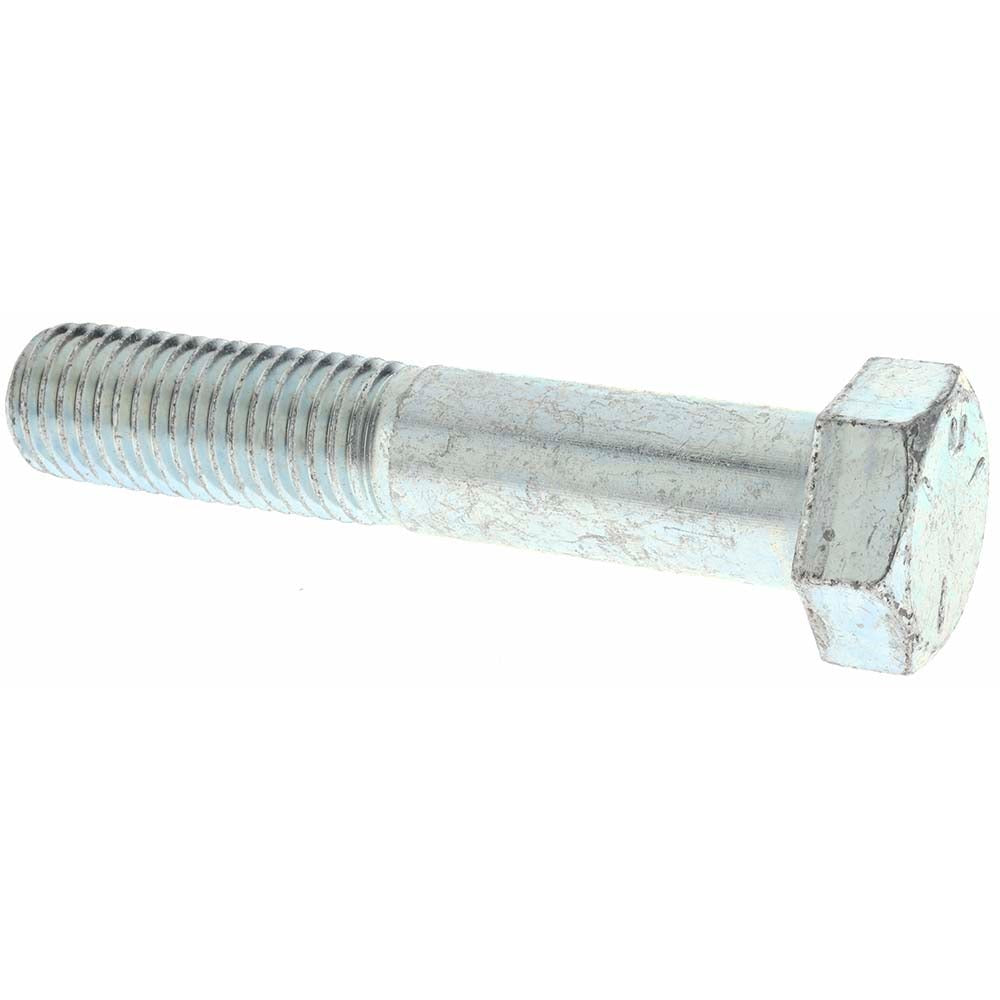

Value Collection MP30160-4 Hex Cap Screw 3/4-10 X 4 in Grade 5

Product Description

The VALUE COLLECTION MP30160-4 is a partially threaded hex head cap screw designed for general mechanical and structural fastening applications. It features a 3/4-10 UNC thread and a 4-inch length under head, manufactured from Grade 5 steel with a zinc-plated finish for basic corrosion resistance. The hex drive head accepts standard hex wrenches and impact sockets. This fastener meets ASME B18.2.1 dimensional standards, making it a reliable choice for trades work where a recognized inch-series fastener spec is required. Plumbers, HVAC technicians, electricians, and general maintenance personnel commonly use Grade 5 hex cap screws for equipment mounting, pipe hanger brackets, and structural connections.

This screw is suited for residential and commercial applications where a 3/4-10 UNC partially threaded fastener is specified. Typical uses include equipment bases, mechanical room installations, structural steel connections, and heavy-duty bracket assemblies. The zinc plating provides light-duty corrosion protection appropriate for indoor or protected outdoor environments. Sold in packages of 10 with a minimum order quantity of 1.

Key Features

• 3/4-10 UNC thread with 4-inch length under head for deep fastening reach
• Partially threaded shank for improved shear strength in structural connections
• Grade 5 steel construction meets strength requirements for general mechanical fastening
• Zinc-plated finish provides light corrosion resistance in protected environments
• Conforms to ASME B18.2.1 dimensional standard for inch-series hex cap screws
• Packaged in quantities of 10 to support job-site and shop use

Compatibility

Designed as a standard inch-series hex head cap screw for use in any application calling for a 3/4-10 UNC partially threaded fastener conforming to ASME B18.2.1.

Installation Notes

Installation is performed with a standard hex wrench, socket wrench, or impact driver fitted with the appropriate 3/4-inch hex socket. Always confirm the mating thread is 3/4-10 UNC before installation to avoid cross-threading. De-energize or shut down any equipment before fastening or removing hardware on mechanical systems. Follow applicable codes and manufacturer torque specifications for the assembly being serviced.
