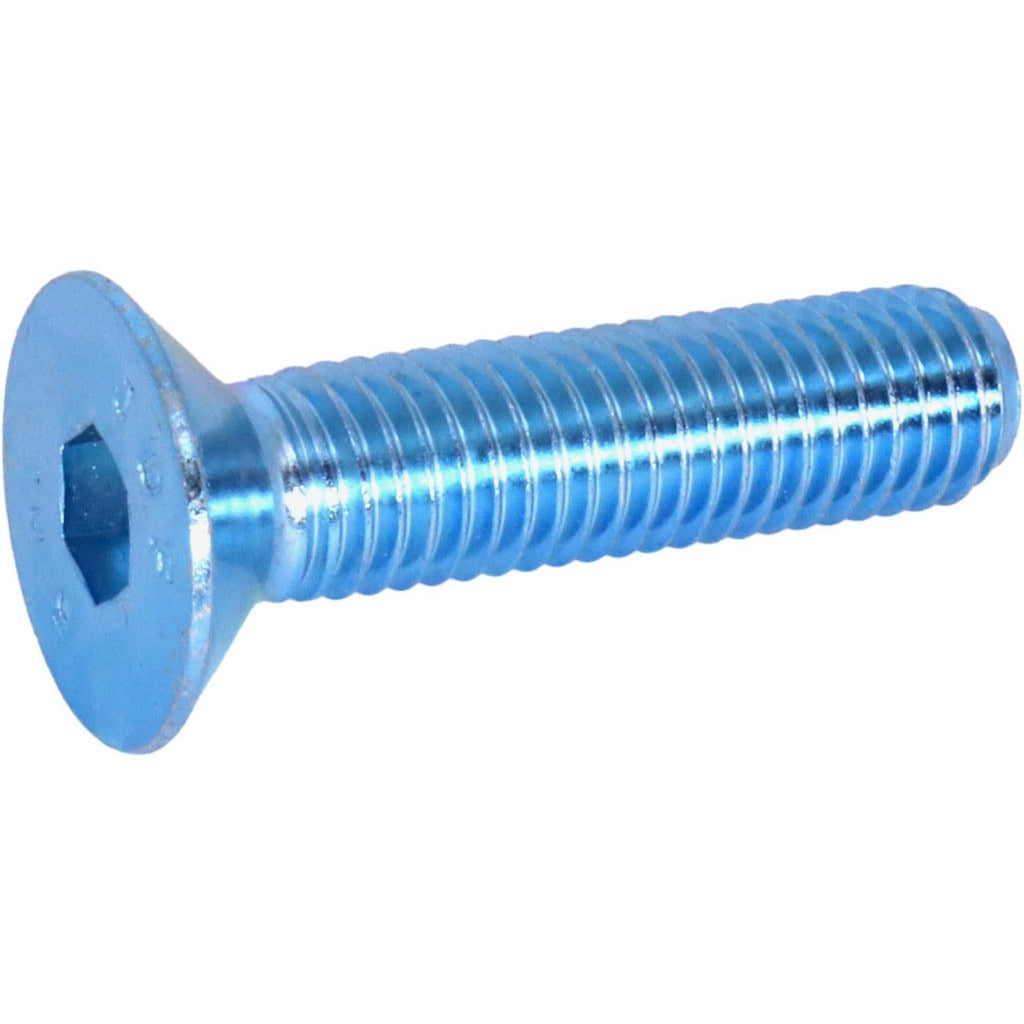

Value Collection MKFC12C050MBPKG M12x1.75 Flat Socket Cap Screw 5pk

Product Description

The VALUE COLLECTION MKFC12C050MBPKG is a flat socket cap screw engineered to metric specifications for demanding mechanical and structural fastening applications. It carries an M12x1.75 thread size with a 50 mm overall length and is fully threaded from head to tip. The screw is manufactured from grade 10.9 alloy steel, which delivers high tensile strength suitable for high-load bolted connections. A zinc-blue trivalent chromate finish provides corrosion resistance while remaining compliant with RoHS and REACH regulations. Drive engagement is through an 8 mm hex socket, requiring a matching hex key or socket driver. This package contains 5 screws.

This flat socket cap screw is suited for applications where a low-profile, flush or countersunk head is required, such as machine guards, jigs, fixtures, brackets, and equipment housings. The metric M12x1.75 thread standard and DIN 7991 and ISO 10642 conformance make it appropriate for use in industrial machinery, fabricated assemblies, and maintenance repair operations where metric fasteners are specified. The trivalent chromate finish is preferred in environments where RoHS compliance is required, including electrical enclosures and control panel assemblies.

Key Features

• Grade 10.9 alloy steel construction for high tensile strength in structural fastening
• Fully threaded M12x1.75 right-hand thread for consistent clamping force across the full shank length
• Flat countersunk head profile keeps the fastener flush or below the mating surface
• 8 mm hex socket drive for precise torque application with standard hex tools
• Zinc-blue trivalent chromate finish provides corrosion resistance and meets RoHS and REACH compliance requirements
• Conforms to DIN 7991 and ISO 10642 fastener standards

Compatibility

Designed as a metric replacement or maintenance fastener for applications specifying an M12x1.75 flat socket cap screw per DIN 7991 or ISO 10642 standards.

Installation Notes

Installation is performed with an 8 mm hex key or hex socket driver. Ensure the mating material is appropriately tapped or uses a compatible metric nut before driving the fastener to avoid cross-threading. De-energize and lock out any equipment before replacing fasteners on live assemblies. Do not substitute grade 10.9 fasteners in joints originally specified for a different grade without verifying load requirements with the equipment manufacturer or a qualified engineer.
