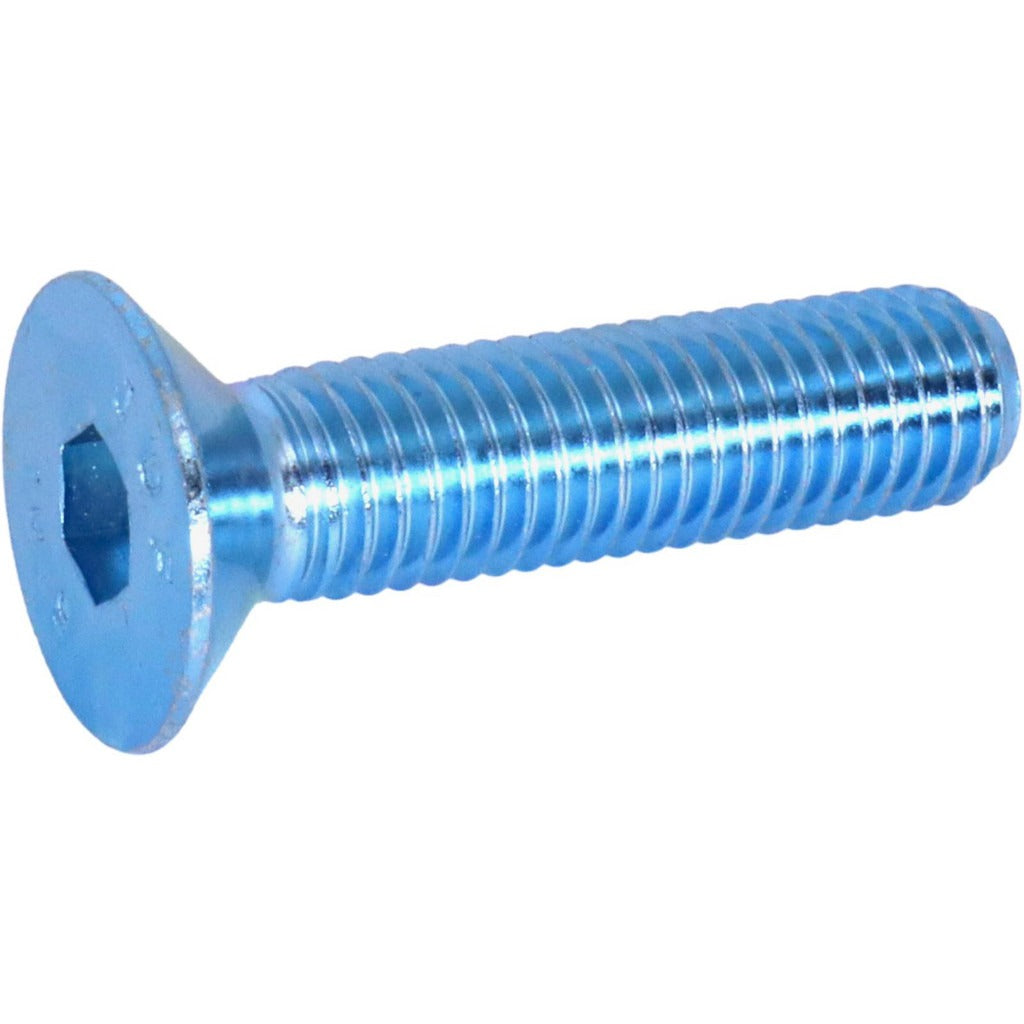

Value Collection MKFC05C025MBPKG M5x0.8 Flat Socket Cap Screw 50pk

Product Description

The VALUE COLLECTION MKFC05C025MBPKG is a metric flat socket cap screw designed for flush or countersunk fastening applications in mechanical assemblies. It features an M5x0.8 thread with a 3.00 mm hex socket drive and an overall length of 25.00 mm. Manufactured from 10.9 grade alloy steel, this screw delivers high tensile strength suited for demanding structural and machine-build applications. The zinc-blue trivalent chromate finish provides corrosion resistance and meets RoHS and REACH compliance standards. This package contains 50 screws, making it practical for production runs, service kits, or shop restocking.

Flat socket cap screws are used where a low-profile, flush-mount fastener is required and a conventional hex head would protrude beyond acceptable clearance. Typical applications include machine frames, enclosures, tooling fixtures, equipment panels, and structural mechanical assemblies requiring a clean surface finish. The hex socket drive allows installation in confined spaces using a standard hex key or Allen driver. This screw is fully threaded along its 25.00 mm length, providing maximum thread engagement across the full grip range.

Key Features

• M5x0.8 metric thread, right-hand direction, fully threaded along entire 25.00 mm length
• 10.9 grade alloy steel construction for high tensile and proof load performance
• 3.00 mm hex socket drive for use with standard Allen or hex key tooling
• 10.00 mm head diameter allows flush or countersunk seating in mating surfaces
• Zinc-blue trivalent chromate finish provides corrosion resistance without hexavalent chromium
• RoHS and REACH compliant; meets DIN 7991 and ISO 10642 fastener standards
• Package quantity of 50 screws for production, service, or shop stock use

Compatibility

Designed as an OEM-style replacement or standard metric fastener for assemblies requiring a DIN 7991 or ISO 10642 flat socket cap screw in M5x0.8 with a 25.00 mm overall length.

Installation Notes

Installation is performed with a 3.00 mm hex key or Allen driver; use a calibrated torque wrench where a specific clamp load is required per the assembly specification. Ensure the receiving hole is countersunk to the correct angle to fully seat the flat head flush with the mating surface. De-energize and lock out any powered equipment before fastener replacement or assembly work. Follow applicable mechanical and structural codes for the installation environment.
