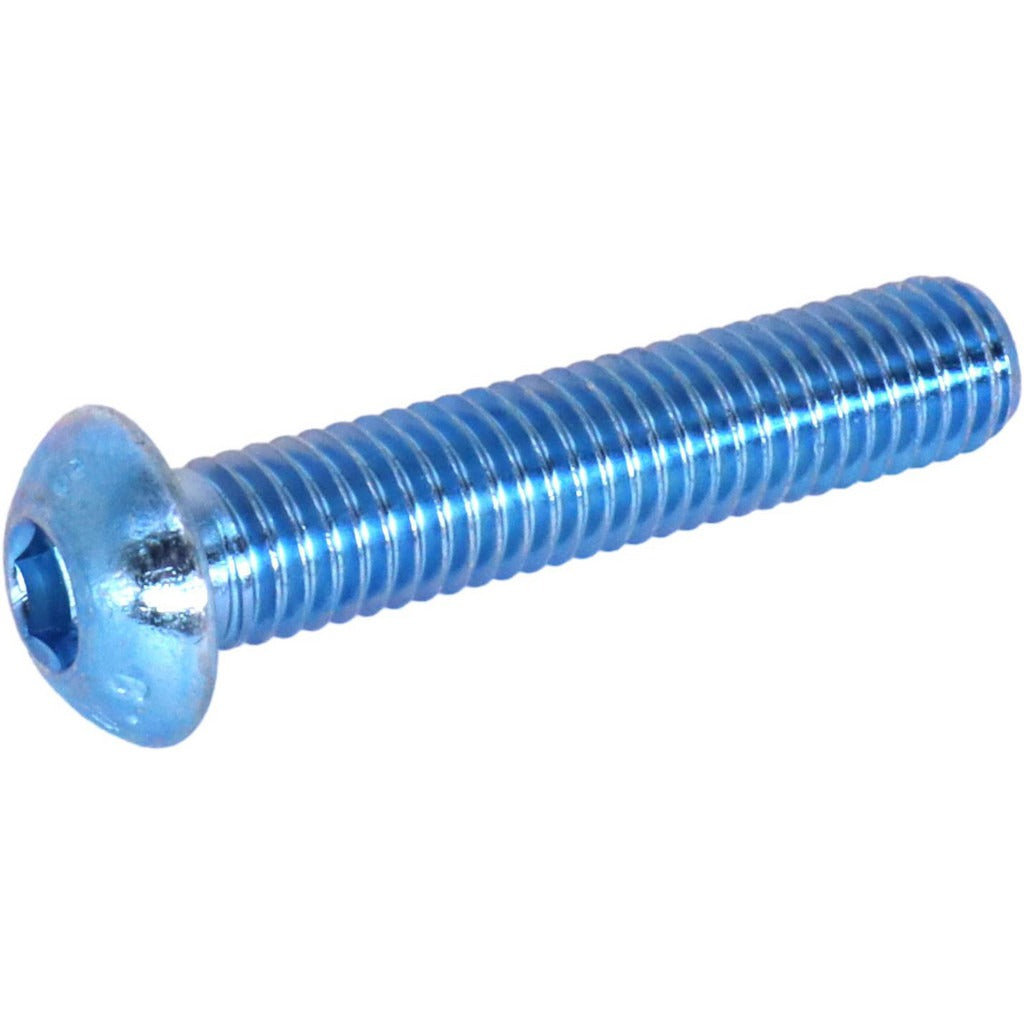

Value Collection MKBC10C035MBPKG M10x1.5 Button Cap Screw 10pk

Product Description

The VALUE COLLECTION MKBC10C035MBPKG is a fully threaded button socket cap screw designed for applications requiring a low-profile head and high-strength fastening. Manufactured from alloy steel to material grade 10.9, these screws deliver excellent tensile strength suitable for demanding mechanical assemblies. The M10x1.5 thread with a 35 mm length under head and 6 mm hex drive makes them compatible with standard hex keys and Allen wrenches. The zinc-blue trivalent chromate finish provides corrosion resistance while meeting RoHS and REACH compliance requirements. Each package contains 10 screws conforming to ISO 7380 fastener standards.

These button socket cap screws are used across a wide range of trade and industrial applications including HVAC equipment assemblies, panel and bracket mounting, plumbing fixture hardware, and electrical enclosure fabrication. The low-profile domed button head is well suited for installations where clearance is limited or a flush-style appearance is required. They are appropriate for both original equipment assembly and field service replacement in residential and light commercial settings.

Key Features

• M10x1.5 fully threaded alloy steel construction at material grade 10.9 for high tensile strength
• Low-profile button head per ISO 7380 standard for use in clearance-restricted installations
• 6 mm hex drive compatible with standard hex keys and socket tools
• 35 mm length under head provides substantial thread engagement for secure fastening
• Zinc-blue trivalent chromate finish for corrosion resistance without hexavalent chrome
• RoHS and REACH compliant for use in environmentally regulated applications

Compatibility

Designed as an ISO 7380 standard button socket cap screw suitable for M10x1.5 threaded holes in mechanical assemblies, brackets, and equipment panels across HVAC, plumbing, electrical, and general industrial applications.

Installation Notes

Installation is performed with a 6 mm hex key or Allen-style socket driver. Ensure the mating threaded hole is clean and free of debris before driving. Power down or de-energize any equipment before accessing fastened panels or enclosures. Do not exceed the rated clamp load for grade 10.9 hardware when torquing to final specification.
